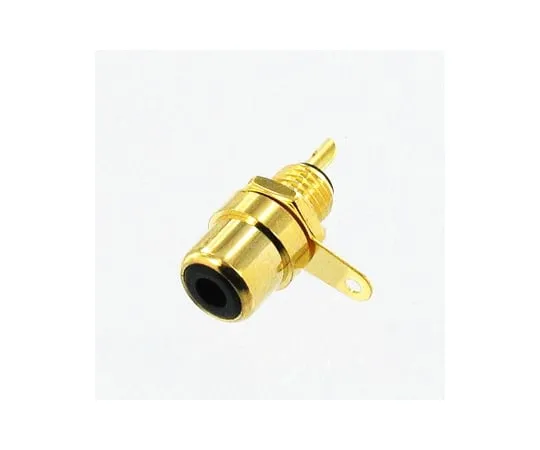

63-3100-83 RCA Jack for black panel, gold-plated, non-insulated WTN20F6213GB
Product Description
Product Model: 63-3100-83Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3100-83
Product Brand: Linkman
Features
- Insulation and Non-Insulation
- Panel mounting type RCA pin jacks, φ3.5 jacks, terminals, etc. are available in "Insulation Type" and "Non-Insulation Type."
- When this jack/terminal is attached to a metal panel, it indicates whether or not the GND terminal side is conductive to the panel.
- In the case of the insulated type, the GND terminal of the jack/terminal is not electrically conductive to the metal panel.
- In the non-insulated type, the metal panel and GND terminal are electrically connected.
- Use insulated connectors when you do not want to create a GND (ground) loop.
- Also, the speaker output may not be GND on the -side, and since a large current flows, it is recomm***ed to *** an insulation type that does not drop on the panel.
- Generally, the input terminal of the RCA is not shared with the chassis (panel) GND.
- * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop."
- If you experience symptoms such as noise contamination or hum, *** an insulated mold to cut the GND loop.
Spec
- Connector shape: Jack
- Color: Black (coloring paint)
- Format: Straight
- Terminal Treatment: Gold Plating
- Materials: Brass (body), Copper (solder terminals)
- Mounting diameter: phi 10 mm
- Remarks: For mounting panels
