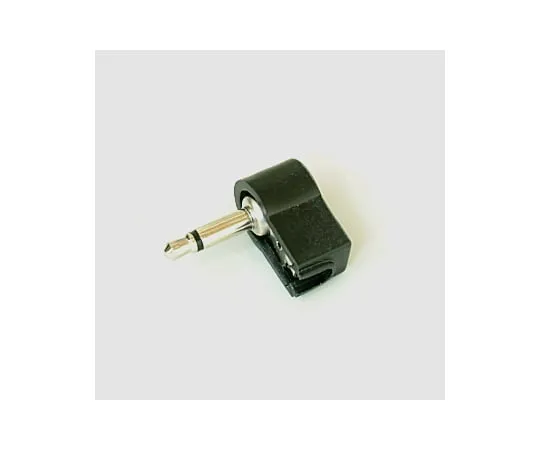

63-3100-65 3.5 mm Mono Plug L Type WTN03F1100MN
Product Description
Product Model: 63-3100-65Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3100-65
Product Brand: Linkman
Features
- 3.5 mm diameter L-shaped monaural plug. The body part will come off, so please remove it before soldering.
- Package :-
- Plug/Jack: 3.5 mm Plug
- Stereo/Mono: Mono
- Number of Poles: 2 Poles
- Type: L
- Terminal Processing :-
- Materials :-
- Remarks :-
- Insulation and non-insulation
- Panel-mounted RCA pin jacks, φ3.5 jacks, etc. are divided into "insulation type" and "non-insulation type." What is insulated or uninsulated? When a connector is attached to a panel, it means whether the GND terminal of the connector makes contact with the panel.
- In the case of the insulated type, the GND terminal of the connector is not connected (contacted) with the panel.
- The non-insulated type is electrically connected when the panel is metallic.
- Use an insulated connector when you do not want to create a GND (ground) loop.
- * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop." When the magnetic flux crosses the loop, a current flows through the GND line, creating a voltage that creates noise. In such cases, breaking the loop prevents noise ca***d by the interlocking of magnetic flux.
