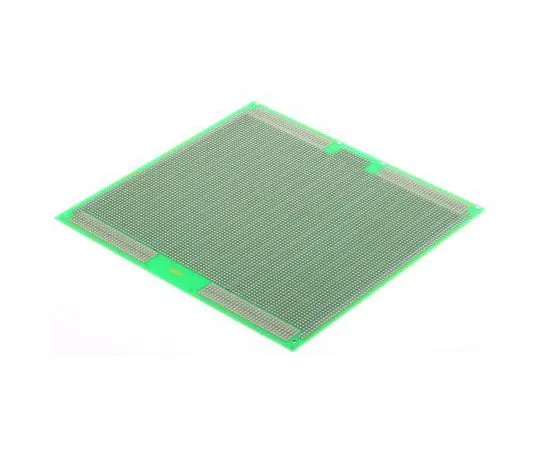

63-4660-03 Double Sided DIN 41612 Matrix Board FR4 with 1.02mm Holes 2.54 x 2.54mm Pitch, 233.4 x 220mm 110-2517
Product Description
Product Model: 63-4660-03Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4660-03
Product Brand: RS PRO
Features
- Square Pads and Metal Foil Laminate Holes
- Metal foil laminates allow you to place wires in the same hole as the tail of the component to ensure a reliable solder connection.
- DIN41612 connectors with 96/96 contacts are attached at both ***s.
- The entire length of the board is equipped with power rails.
- The earth plane ensures maximum shielding on the component side.
Spec
- Number of Sides:Double Sided
- Hole Pitch:2.54 x 2.54mm
- Dimensions:233.4 x 220mm
- Length:233.4mm
- Width:220mm
- Base Material:Epoxy Glass Fabric Laminate
- Hole Diameter:1.02mm
- FR Material Grade:FR4
- Copper Thickness:35µm
- Connection:DIN 41612
- CODE No.:110-2517
