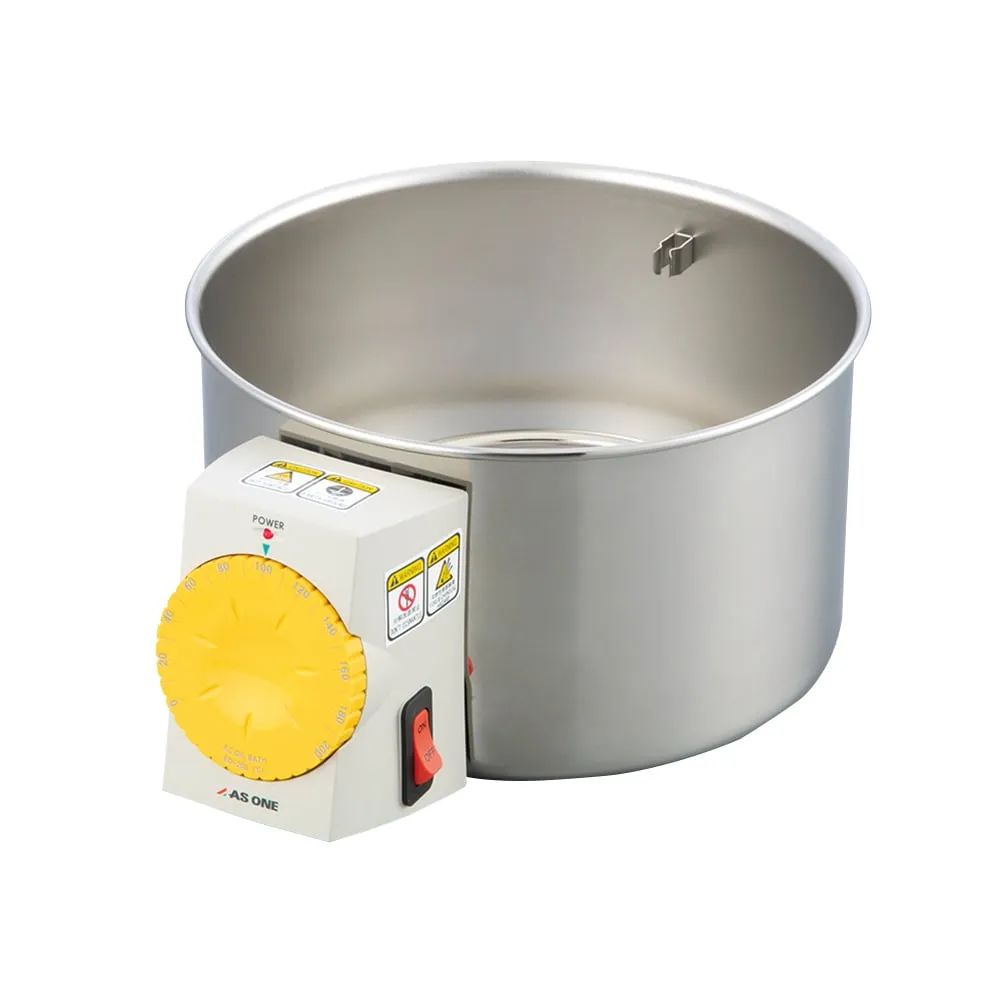

1-4596-31-90 【Global Model】 EC Oil Bath (220 VAC plug type: F) 220 V±10% EOK-200R-F EOK-200R-F
Product Description
Product Model: 1-4596-31-90Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4596-31-90
Product Brand: AS ONE Corporation
Features
- Since the control part cover is made of PP, it has excellent chemical resistance.
- Heater is forcibly turned off when the temperature is too high and an error message is displayed.
Spec
- Analog
- Temperature Setting Range: Room Temperature +5°C~180°C
- Tank Inner Dimension: φ208 x 123 mm
- External Dimensions: 220 x 278 x 124 mm
- Temperature control system: Microcomputer type proportional control
- Temperature Sensor: Resistance Temperature Measuring Body (Pt100 Ω)
- Material: Control Part Cover/PP (Polypropylene), Water Tank/Stainless Steel (SUS304), Heater/Stainless Steel (SUS304) Nickel Plated
- Heater Capacity: 750 W
- Safety device: circuit breaker, bimetal thermostat
- Power: 220 VAC 50/60Hz 3P Plug
- Weight: Approx. 1.5 kg
- *Drainboard is not included.
- Compliant with RoHS2 (EU) 2015/863
- Difference from conventional part numbers: Main power switch (white → red) No other changes.
- Conventional Products: 1-4596-81 ■ Overseas Specifications EC Oil Bath 220 V±10%
