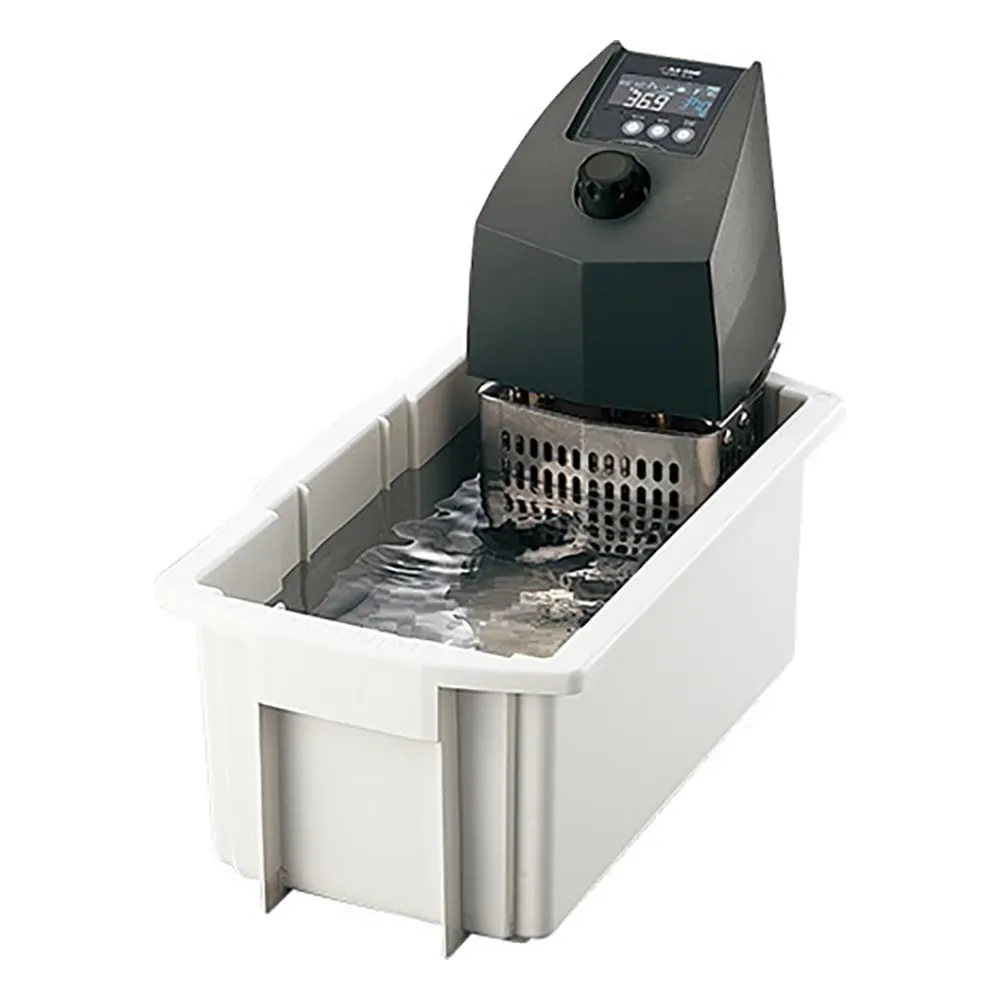

1-4594-31-90 【Global Model】 Thermax Water Bath (220 VAC plug type: F) TMK-1A-F
Product Description
Product Model: 1-4594-31-90Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4594-31-90
Product Brand: AS ONE Corporation
Features
- The compact body is full of convenient functions.
- Highly accurate temperature control is possible using sophisticated temperature control algorithm and low error platinum temperature sensor.
- Easy to *** jog dial input method is ***d for temperature setting and timer setting for quick and reliable setting.
- High precision temperature control is possible by adopting microcomputer type PID control.
- Equipped with a notification buzzer when the set temperature and set time are reached.
- Uses a double lock mechanism consisting of two indep***ent circuits.
- Four timer states (ON, OFF, ON/OFF, SV) are provided as standard.
- Beautiful and easy to see display screen. Uses LCD with good visibility and negative backlight.
- Key lock setting, accumulated operation time, timer and program remaining time can also be displayed.
Spec
- Body Dimensions (mm): 150 x 160 x 308
- Effective Inner Dimension (mm): 180 x 252 x 153
- Type: Water Bath
- Performance
- Temperature Control Range: Room Temperature +5~80°C
- Temperature Adjustment Accuracy: ±1.0°C (Our Test Value)
- Temperature Setting Range: -20.0~+80.0°C (Body does not have cooling function. Use an external (optional) cooling device. )
- Function: Abnormal heating prevention device (thermostat)
- Configuration: Sensor: Pt100 Ohm
- Heater capacity: 1 kW
- Standard: Stirring Mechanism: Jet Stirring Type
- Pump Capacity: Maximum Discharge/10 L/min, Maximum Pump Head/1.4 m
- Timer Setting Range: 1 minute to 99 hours 59 minutes (1 minute increments)
- Clamp Mountable Width: 40 mm
- Power: 220 VAC 50/60Hz
- Accessory: Water Tank (PP), RoHS2 (EU) 2015/863 Compatible
