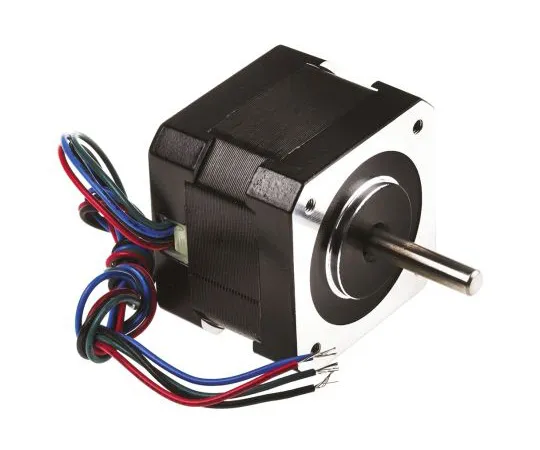

63-4860-50 RS PRO Hybrid, Permanent Magnet Stepper Motor 0.9°, 2.2mNm, 2.8 V, 1.33 A, 4 Wires 535-0372
Product Description
Product Model: 63-4860-50Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4860-50
Product Brand: RS PRO
Features
- High Torque Hybrid Stepper Motor. High Torque Hybrid Stepper Motors are motion systems allowing to have a high positioning precision. With their high power already at low speed, their stall torque and the possibility to divide the steps in micro steps, stepper motors can provide direct and precise motions in a small volume. Features ; Benefits. High Torque Stepper Motors Hybrid technologies Permanent magnet. Product Application Information. Computer controlled stepper motors are a type of motion-control positioning system. They are typically digitally controlled as part of an open loop system for *** in holding or positioning applications. In the field of lasers and optics they are frequently ***d in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other ***s are in packaging machinery, and positioning of valve pilot stages for fluid control systems. Commercially, stepper motors are ***d in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives, intelligent lighting, camera lenses, CNC machines and, more recently, in 3D printers.
Spec
- Quantity:1piece
- Step Angle : 0.9°
- Holding Torque : 2.2mNm
- Number Of Wires : 4
- Voltage Rating : 2.8 V
- Frame Size : 42.3 x 42.3mm
- Stepper Motor Type : Hybrid, Permanent Magnet
- Shaft Diameter : 5mm
- Current Rating : 1.33 A
- Shaft Length : 22mm
- Depth : 33mm
- Resistance Per Phase : 2.1Ω
- Standards Met : RoHS Compliant
- CODE No.:535-0372
