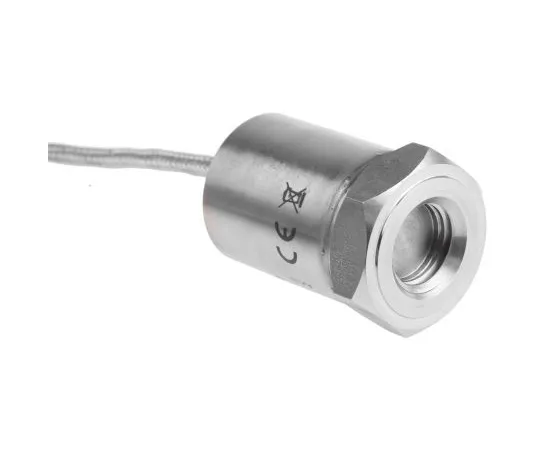

63-4860-06 Monitran Vibration Sensor 20 mA -25°C → +90°C, Dimensions 27 x 43 mm MTN/1185CQ-25
Product Description
Product Model: 63-4860-06Product Brand: Monitran Featur […]
Contact Us
Product Details
Product Model: 63-4860-06
Product Brand: Monitran
Features
- MTN1185 Series 4-20mA Accelerometer. Used for air handling units, building services, fans 4-20mA output for PLC interface Output proportional to RMS velocity (mm/s) Available with 0-10mm/s (533-2368) or 0-25mm/s (533-2374) velocity ranges Frequency from 2 Hz to 1 kHz Dynamic range: 50 g peak 5 meter armoured PTFE cable IP 67 Stainless Steel body Case To *** with Glue or M8 Mounting stud Dimensions (DxL): 27 x 43 mm
Spec
- Quantity：1piece
- Maximum Current : 20 mA
- Length : 27mm
- Width : 27mm
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +90°C
- Dimensions : 27 x 43 mm
- CODE No.:533-2374
