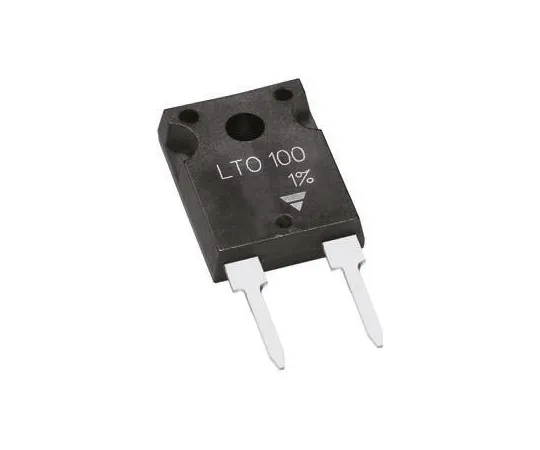

63-4859-84 Vishay 100mΩ 100W Fixed Resistor ±5% ±250ppm/°C LTO100FR1000JTE3
Product Description
Product Model: 63-4859-84Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4859-84
Product Brand: Vishay
Features
- LTO100 Series 100W Thick Film Power Resistors. LTO100 series 1000W thick film power resistors with a compact TO-247 package and a 100W at 25°C case temperature heatsink mounted. These LTO100 series 100W power resistors have a direct ceramic mounting on heatsink, a broad resistance range of 0.015 Ω to 1 MΩ, are non inductive and are AEC-Q200 qualified. Thick film ceramic resistors 100 Watt at 25°C case temperature heatsink mounted Direct mounting ceramic on heatsink TO-247 package Isolated case Adjusted by sand trimming to reduce hot spots
Spec
- Quantity：1piece
- Resistance : 100mΩ
- Power Rating : 100W
- Tolerance : ±5%
- Technology : Thick Film
- Series : LTO100
- Package/Case : TO-247
- Lead Pitch : 10.16mm
- CODE No.:532-8533
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4612-98 RS PRO Heat Shrink Tube, Clear 4.8mm Sleeve Dia. x 1.2m Length 2:1 Ratio 398-436
model: 63-4612-98
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

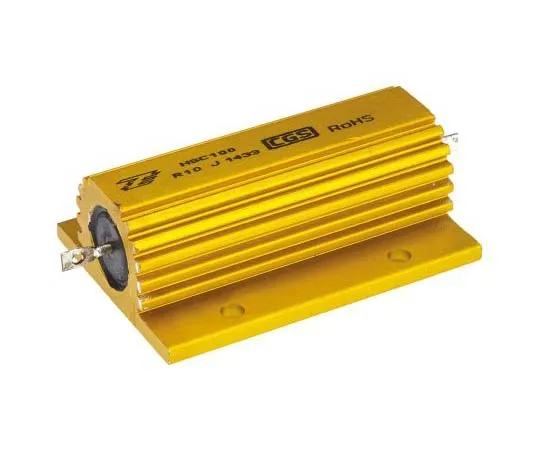

63-7758-68 TE Connectivity HSC100 Series Aluminium Ho***d Solder Lug Wirewound Wire Wound Fixed Resistor, 100mΩ ±5% 100W HSC100R10J
