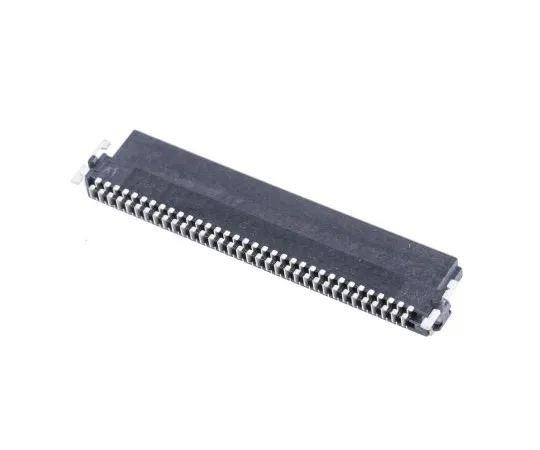

63-4858-70 ERNI SMC Series 1.27mm Pitch 68 Way 2 Row Right Angle PCB Socket, Surface Mount, Solder Termination 154743
Electronic/Electrical Parts and Controll Equipments

63-4858-70 ERNI SMC Series 1.27mm Pitch 68 Way 2 Row Right Angle PCB Socket, Surface Mount, Solder Termination 154743

model: 63-4858-70
brand: ERNI

Product Description

Product Model: 63-4858-70Product Brand: ERNI Features E […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4858-70
Product Brand: ERNI

Features

  • ERNI SMC Series 1.27 mm High-Speed SMT Right Angle Connectors. SMC series 1.27 mm pitch high-speed SMT right angle mount signal connectors with a compact space saving design and high contact density. These SMC signal connectors offer high performance, high signal integrity and reliability. The contact design of these SMC high-speed signal connectors provides a continuous impedance profile enabling high transmission rates of up to 3 Gbit/s. The contacts have an ultra reliable dual beam design that provides a low resistance enabling high electrical performance. The housings of these 1.27mm SMC connectors have mating face polarization to prevent mis-mating and insertion chamfers for accurate insertion. Locating pegs on the bottom of the connector allow precise positioning on the PCB before soldering. Soldering brackets provide a high retention force on the PCB and absorbing mechanical stress enabling a robust SMT connection and resistance to high shock and vibration. These 1.27mm SMC connectors have a wide operating temperature range of -55 to +125°C making them suitable for *** in various environments. The design of these SMC 1.27 mm connectors makes them suitable for fully automated board assembly. Features ; Benefits. Temperature range -55 → 125 °C Housing material LCP UL 94 V-0 Copper alloy contacts have Gold plating on mating area and Tin plating on termination area Clip material Copper alloy with Tin plating Compact high density design Ultra reliable dual beam contact design High-speed signal rates of up to 3 Gbit/s Polarization for accurate mating Locating pegs for PCB placement Soldering brackets for secure PCB retention Wide operating temperature range Suitable for fully automated board assembly. These SMC 1.27 mm high-speed signal connectors can be ***d for daughter card and ext***er card applications in unshielded high-speed applications across a wide range of industries. These industries include industrial, automotive, communications, medical applications and consumer applications. Compact high density design Ultra reliable dual beam contact design High-speed signal rates of up to 3 Gbit/s Polarization for accurate mating Locating pegs for PCB placement Soldering brackets for secure PCB retention Wide operating temperature range Suitable for fully automated board assembly. Applications. These SMC 1.27 mm high-speed signal connectors can be ***d for daughter card and ext***er card applications in unshielded high-speed applications across a wide range of industries. These industries include industrial, automotive, communications, medical applications and consumer applications

Spec

  • Quantity:1piece
  • Number of Contacts : 68
  • Number of Rows : 2
  • Pitch : 1.27mm
  • Type : Board to Board
  • Mounting Type : Surface Mount
  • Body Orientation : Right Angle
  • Termination Method : Solder
  • Series : SMC
  • CODE No.:528-3058
