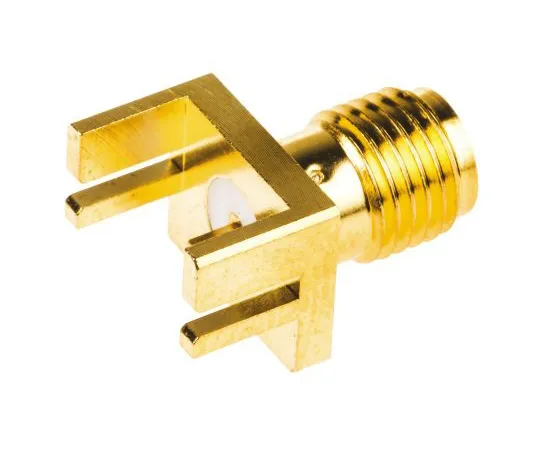

63-4858-27 RS Pro Straight 50Ω Edge Mount SMA Jack, Solder Termination 526-5763
Product Description
Product Model: 63-4858-27Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4858-27
Product Brand: RS PRO
Features
- PCB End Launcher. This range of RS Pro RF coaxial 50 Ohm SMA edge mount *** launchers have a DC-18 GHz frequency range. Designed for efficient mounting to printed circuit boards, these RF coaxial 50 Ohm SMA edge mount *** launchers have a gold plated brass body, teflon insulator and gold plated contact. The RS Range of RF Coaxial End Launchers includes the following: Stock number ; 526-5757 526-5757 is 9.52 x 9.52mm square and accepts a PCB thickness of 1.7mm Stock number ; 526-5763 526-5763 is 9.52 x 9.52mm square and accepts a PCB thickness of 1.2mm Stock number ; 526-5785 526-5785 is 6.35 x 6.35mm square and accepts a PCB thickness of 1.57mm Stock number ; 526-5791 526-5791 is 6.35 x 6.35mm square and accepts a PCB thickness of 1.2mm
Spec
- Quantity:1piece
- G***er : Female
- Mounting Type : Edge Mount
- Body Orientation : Straight
- Termination Method : Solder
- Polarity : Normal
- Bulkhead : No
- Impedance : 50Ω
- Operating Frequency : 0 → 18GHz
- Body Plating : Gold
- Size : Subminiature
- Contact Material : Beryllium Copper
- CODE No.:526-5763
