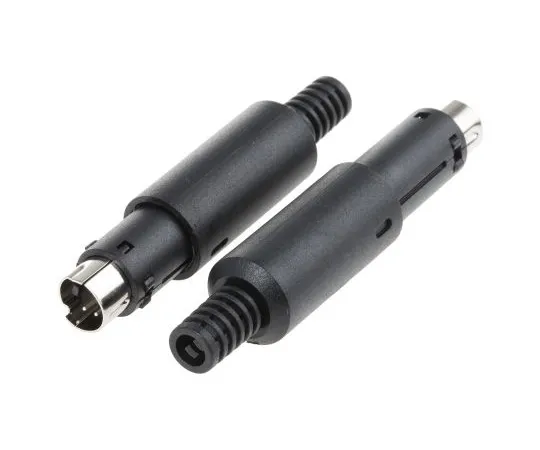

63-4858-25 RS PRO 4 Pole Miniature Din Plug Plug, 1A, 100 V ac 526-0825
Product Description
Product Model: 63-4858-25Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4858-25
Product Brand: RS PRO
Features
- Mini-DIN 4-9 way. Range of connectors also known as YC connectors, well known in the field of IT and video. They have the advantage of being very compact, whilst offering very good electrical performance. The female contacts are of phosphor bronze, the male contacts of brass. Current-voltage rating is 1 A at 100 VAC and 2 A at 12 VDC.
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 4
- G***er : Male
- Mounting Type : Cable Mount
- Connector Size : Miniature
- Body Orientation : Straight
- Current Rating : 1A
- Voltage Rating : 100 V ac
- Shielded/Unshielded : Shielded
- Series : MDN
- Housing Material : ABS
- Minimum Operating Temperature : -55°C
- CODE No.:526-0825
