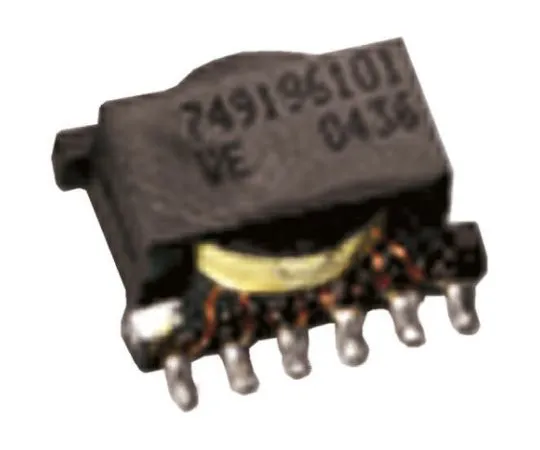

63-4853-36 3 Output SMPS Transformer, 21.6μH 749196211
model:
63-4853-36
brand:
Wurth Elektronik
Product Description
Product Model: 63-4853-36Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-4853-36
Product Brand: Wurth Elektronik
Features
- Power levels of between 1 and 50 Watts can be transformed with the WE-FLEX series transformers. They can be ***d at switching frequencies of up to 1 MHz. WE-FLEX Transformers. 3x2 windings Isolation voltage 500Vdc Low stray inductance Operating temperature: -40°C to +125°C Applications include: flyback, forward, push-pull, step-down, step-up, SEPIC converters
Spec
- Quantity：1piece
- Number of Outputs : 3
- Mounting Type : Surface Mount
- Inductance : 21.6µH
- Secondary Current : 950mA
- Length : 16.3mm
- Width : 12mm
- Depth : 7.4mm
- Dimensions : 16.3 x 12 x 7.4mm
- Isolation Voltage : 500V dc
- Leakage Inductance : 0.17µH
- CODE No.:522-6049
