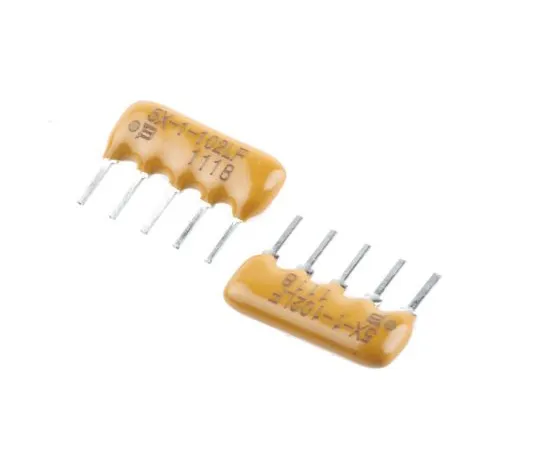

63-4852-13 Bourns Bussed Resistor Network 1kΩ ±2% 4 Resistors, 0.63W Total, SIP package 4600X Through Hole 4605X-101-102LF
Product Description
Product Model: 63-4852-13Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4852-13
Product Brand: Bourns
Features
- 4-Bussed Resistors. Bourns's 4600X 4-bussed resistors have a broad resistance range and are suitable for a number of applications. The epoxy resin body material is flammability tested, and the components feature a good standard of resistance to shock, heat and moisture.
Spec
- Quantity:1bag(25pieces)
- Series : 4600X
- Number of Resistors : 4
- Tolerance : ±2%
- Power Rating : 0.63W
- Power Rating per Resistor : 0.2W
- Package/Case : SIP
- Case Style : Conformal
- Circuit Designator : BUS
- Temperature Coefficient : ±100ppm/°C
- Termination Style : Through Hole
- Depth : 2.49mm
- Height : 5.08mm
- Length : 12.65mm
- Maximum Operating Temperature : +125°C
- Number of Terminals : 5
- CODE No.:522-3321
