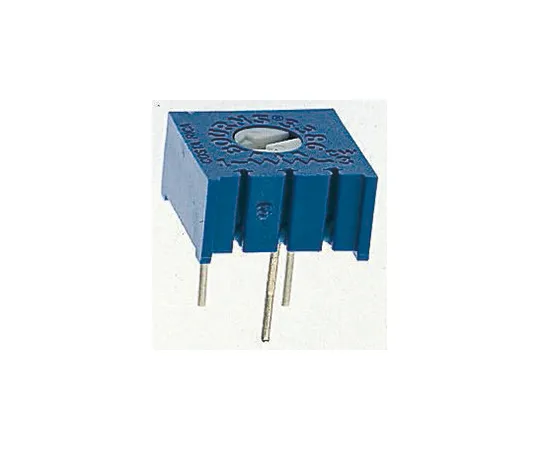

63-4851-61 1MΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3386 Series 3386F-1-105LF
Product Description
Product Model: 63-4851-61Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4851-61
Product Brand: Bourns
Features
- 3386F Top Adjust
Spec
- Quantity：1piece
- Maximum Resistance : 1MΩ
- Mounting Type : Through Hole
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 3386
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 3.15 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:522-2261
