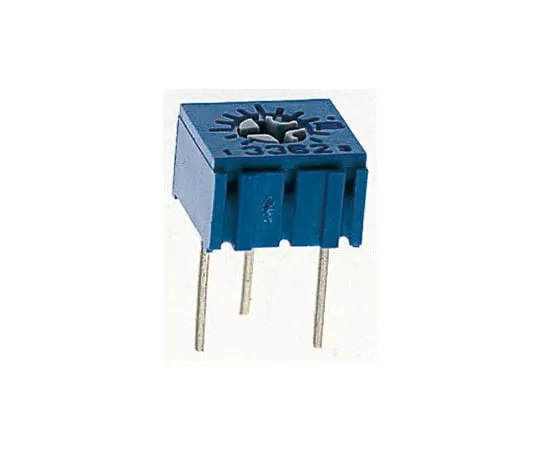

63-4851-42 500kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3362 Series 3362P-1-504LF
Product Description
Product Model: 63-4851-42Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4851-42
Product Brand: Bourns
Features
- Cermet 1//4 in. Square 500mW Top Adjust 3362P Series. Miniature package Rotor designed for automatic machine adjust interface Sealed to withstand harsh environments and immersion cleaning Built in board stand offs Multi-wire wiper to minimise contact resistance variation
Spec
- Quantity：1piece
- Maximum Resistance : 500kΩ
- Mounting Type : Through Hole
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 3362
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 6.6mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:522-1000
