63-4851-23 10kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3329 Series 3329H-1-103LF
Product Description
Product Model: 63-4851-23Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4851-23
Product Brand: Bourns
Features

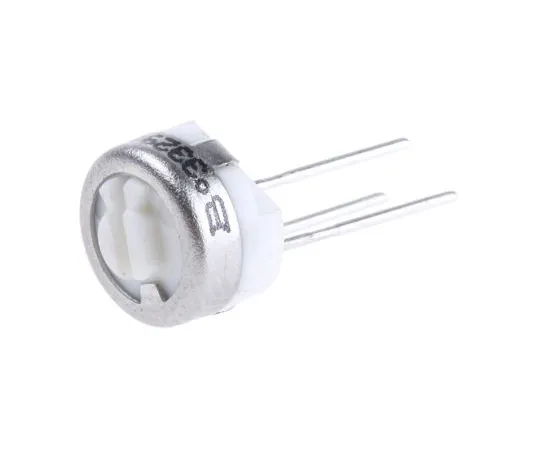

- Cermet 6.35mm (in.) 500mW Top Adjust 3329H Series. Bourns® 3329H 1/4" Round Single Turn Cermet Trimming Potentiometer (Trimpot®). Able to withstand wave soldering and integrated circuit cleaning baths
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Through Hole
- Number of Turns : 1
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 3329
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Diameter : 6.35mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +150°C
- CODE No.:522-0732
