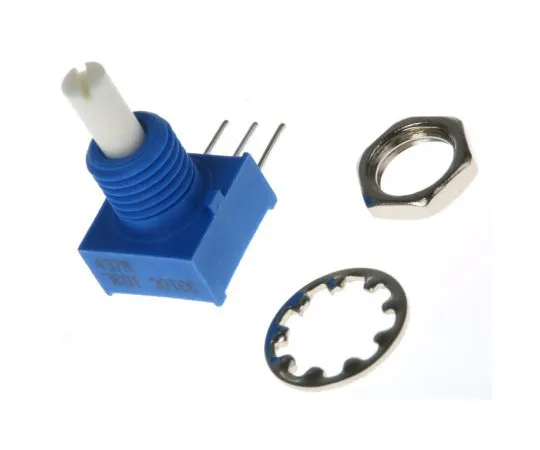

63-4851-03 Bourns 3310C Series Conductive Plastic Potentiometer with a 3.17 mm Dia. Shaft, 10kΩ, ±20%, 0.25W, ±1000ppm/°C 3310C-001-103L
Product Description
Product Model: 63-4851-03Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4851-03
Product Brand: Bourns
Features
- 9mm 3310C Series In-Line Pin. Compact package - saving board and panel space Sealed to withstand immersion board washing Moulded body with built-in standoffs, Panel and PCB mountable Plastic bushing and plastic shaft. Supplied with metal lock washer and nut Temperature -55 to +125 °C
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Number of Turns : 1
- Mounting Type : Panel Mount, Through Hole
- Shaft Diameter : 3.17 mm
- Power Rating : 0.25W
- Termination Style : Pin
- Tolerance : ±20%
- Series : 3310C
- Length : 17.88mm
- Depth : 9.53mm
- Height : 9.53mm
- Dimensions : 17.88 x 9.53 x 9.53mm
- Minimum Operating Temperature : -40°C
- CODE No.:522-0439
