Electronic/Electrical Parts and Controll Equipments

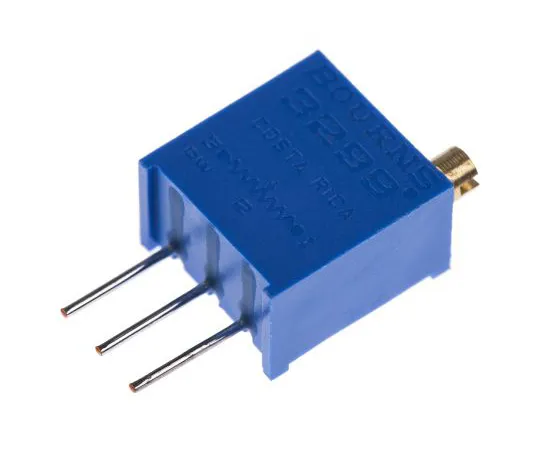

63-4851-01 50kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3299 Series 3299W-1-503LF
Product Description
Product Model: 63-4851-01Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4851-01
Product Brand: Bourns
Features
- 10mm 3/8 in. 500mW Top Adjust 3299W Series. Bourns® 3299W 3/8" Square Multiturn Cermet Trimming Potentiometer (Trimpot®). Multi-contact wiper - low noise, high stability Sealed to withstand immersion board washing Moulded body with built in stand-offs Wiper idles at *** of travel Suitable for 0.1in grid pitch
Spec
- Quantity：1piece
- Maximum Resistance : 50kΩ
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 3299
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 9.53mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:522-0401
