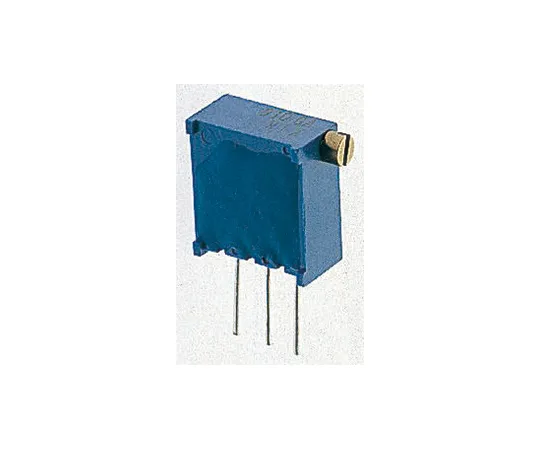

63-4850-62 1MΩ Through Hole Trimmer Potentiometer 0.5W Side Adjust Bourns 3296 Series 3296X-1-105LF
Product Description
Product Model: 63-4850-62Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4850-62
Product Brand: Bourns
Features
- Side Adjust 3296X Series. Bourns® 3296X Series 3/8" Square Multiturn Cermet Trimming Potentiometer (Trimpot®). Slim body profile - higher packing density Sealed to withstand immersion board washing Moulded body with built-in stand-offs Large screw slot for easier adjustment Wiper idles at *** travel Slim body profile-higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand offs IC style pins for PCB assembly Precious metal wiper for set point stability
Spec
- Quantity：1piece
- Maximum Resistance : 1MΩ
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Side Adjust
- Power Rating : 0.5W
- Series : 3296
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 2.19 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:521-9883
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4705-10 Vishay 22nF Polypropylene Capacitor PP 63 V ac, 100 V dc ±1% Tolerance Through Hole MKP 1837 Series MKP1837322011
model: 63-4705-10
brand: Vishay
Electronic/Electrical Parts and Controll Equipments
63-4940-04 ASSMANN WSW Straight Panel Mount Female Version 2.0 Type B USB Connector, 30 V, 1A A-USB-BPFS
model: 63-4940-04
brand: ASSMANN WSW
Electronic/Electrical Parts and Controll Equipments
63-7008-48 RS PRO 15mm Stud Mount M5 20mm Diameter 17.97kg Compression Load, Female to Female Natural Rubber 126-4339
model: 63-7008-48
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

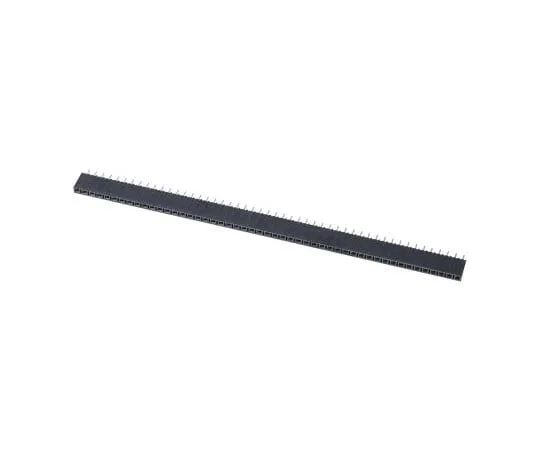

63-7952-51 Samtec BCS Series 2.54mm Pitch 50 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination BCS-150-L-S-TE
