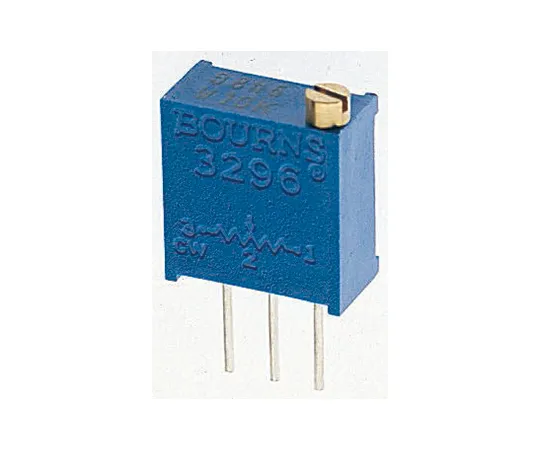

63-4850-44 20Ω Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3296 Series 3296W-1-200LF
Product Description
Product Model: 63-4850-44Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4850-44
Product Brand: Bourns
Features
- Top Adjust 3296W Series. Bourns 3296 series Square trimpot trimming potentiometer/ resistor perform a variety of circuit adjustments in all types of electronic equipment, These through hole trimmers feature a slim body profile, sealed to withstand immersion board washing. It also has a larger screw slot for easier adjustment. Moulded body with built-in stand offs. Features. Side or top adjustment with lead screw Power rating 0.5W 25 turns and rotational life of 200 cycles Temperature coefficient is ±100ppm/°C Temperature Range -55 °C to +125 °C 5 terminal styles Multiturn / Cermet / Industrial / Sealed Chevron seal design. Applications. Consumer Electronics Industrial Portable Devices Power Management
Spec
- Quantity：1piece
- Maximum Resistance : 20Ω
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 3296
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 9.53mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:521-9681
