Electronic/Electrical Parts and Controll Equipments

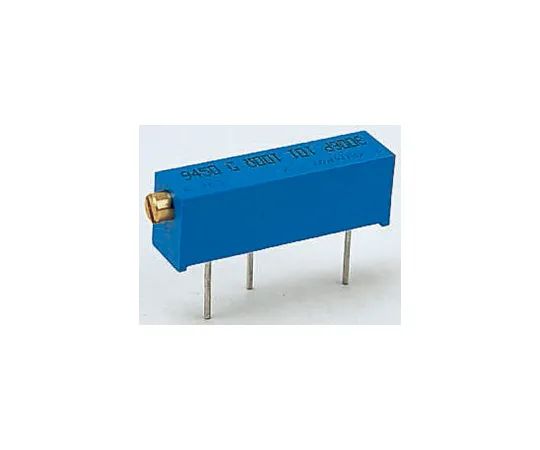

63-4850-14 500kΩ Through Hole Trimmer Potentiometer 0.75W Side Adjust Bourns 3006 Series 3006P-1-504LF
Product Description
Product Model: 63-4850-14Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4850-14
Product Brand: Bourns
Features
- 19mm ( in.) 750mW Rectangular End Adjust 3006 Series Standard. Bourns Standard 3006P Series 19mm ( in.) rectangular *** adjust cermet trimmer with a power rating @ 70°C of 750mW. The 3006P series cermet trimmer s wiper idles at the *** of its travel and is sealed to withstand immersion board washing. Nominal 15 turn Adjustment Angle Panel mounting adaptor available, stock no. < 107-6878') 107-6878/
Spec
- Quantity：1piece
- Maximum Resistance : 500kΩ
- Mounting Type : Through Hole
- Number of Turns : 15
- Orientation : Side Adjust
- Power Rating : 0.75W
- Series : 3006
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 20.57mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:521-9158
