Electronic/Electrical Parts and Controll Equipments

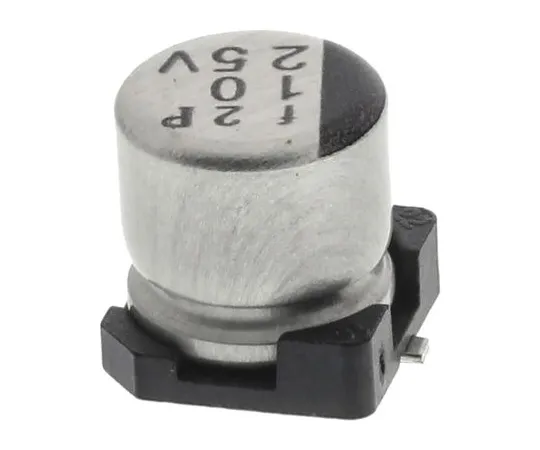

63-4848-09 Nichicon 10μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 5 (Dia.) x 5.4mm +105°C 5mm UWT1E100MCL1GB
Product Description
Product Model: 63-4848-09Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4848-09
Product Brand: NICHICON
Features
- Aluminium Electrolytic Capacitor, WT Series, 105°C. Chip type operating over wide temperature range of to –55 to +105°C. Rated Voltage Range of 4 to 50V Rated Capacitance Range of 0.1 to 1500μF Designed for surface mounting on high density PC board. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU). Lead-free version of WT series
Spec
- Quantity：1bag(25pieces)
- Capacitance : 10µF
- Voltage : 25V dc
- Mounting Type : Surface Mount
- Technology : Electrolytic
- Dimensions : 5 (Dia.) x 5.4mm
- Height : 5.4mm
- Minimum Operating Temperature : -55°C
- Diameter : 5mm
- Maximum Operating Temperature : +105°C
- Lifetime : 1000h
- Series : WT
- Ripple Current : 23mA
- CODE No.:520-1905
