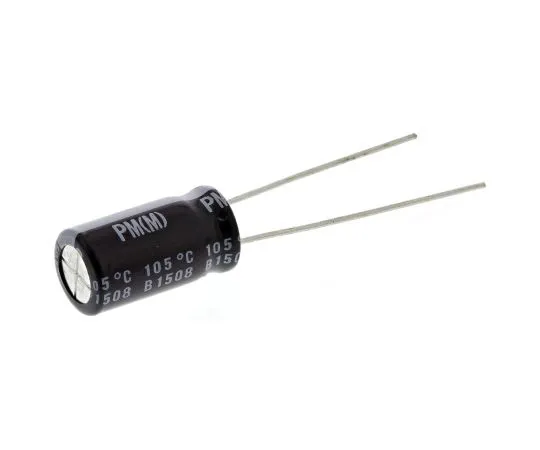

63-4847-94 Nichicon 220μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 15mm +105°C 8mm 3.5mm UPM1E221MPD
Product Description
Product Model: 63-4847-94Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4847-94
Product Brand: NICHICON
Features
- Nichicon PM Series Electrolytic Capacitors. Nichicon PM Series Aluminium Electrolytic Capacitors are high reliability, low impedance products that have a 5000-hour load life and are compliant to the RoHS directive (2011/65/EU). The PM series features a wide temperature range, a rated voltage range of 6.3 V to 450 V, and high ripple current. Features ; Benefits:. High reliability High ripple current Long life up to 5000 hours Lead free reflow soldering Extremely low impedance
Spec
- Quantity：1bag(5pieces)
- Capacitance : 220µF
- Voltage : 25V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 8 (Dia.) x 15mm
- Height : 15mm
- Minimum Operating Temperature : -55°C
- Diameter : 8mm
- Maximum Operating Temperature : +105°C
- Lifetime : 3000h
- Series : PM
- Leakage Current : 4 μA
- CODE No.:520-1494
