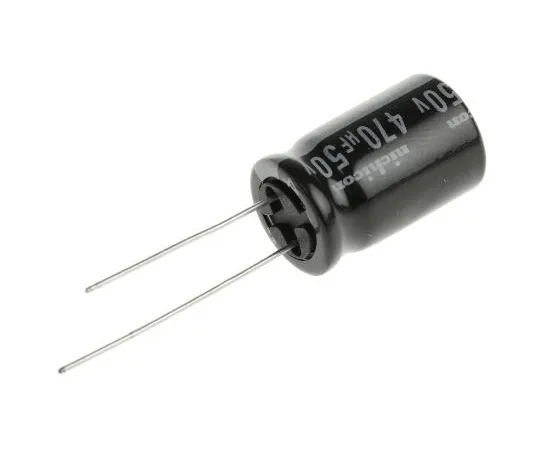

63-4847-65 Nichicon 470μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 20mm +85°C 12.5mm 5mm UVR1H471MHD
Product Description
Product Model: 63-4847-65Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4847-65
Product Brand: NICHICON
Features
- Nichicon VR Series General Purpose Electrolytic Capacitors. Nichicon VR Series Aluminium Electrolytic Capacitors are high reliability capacitors which have a rated life up to 2000 hours. The VR series capacitors offer a high temperature range, high voltage, low impedance and high ripple current. Features ; Benefits:. High reliability High ripple current Long life up to 2000 hours Lead free reflow soldering Capacitance values up to 33000 μF
Spec
- Quantity：1bag(25pieces)
- Capacitance : 470µF
- Voltage : 50V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 12.5 (Dia.) x 20mm
- Height : 20mm
- Minimum Operating Temperature : -40°C
- Diameter : 12.5mm
- Maximum Operating Temperature : +85°C
- Lead Pitch : 5mm
- Series : VR
- Tolerance : ±20%
- CODE No.:520-1034
