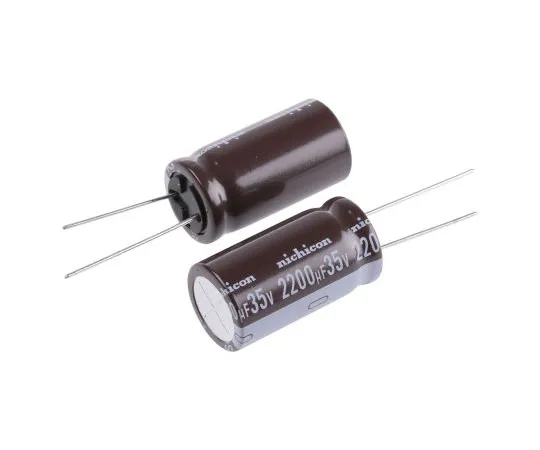

63-4845-82 Nichicon 2200μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 31.5mm +105°C 16mm 7.5mm UPS1V222MHD
Product Description
Product Model: 63-4845-82Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4845-82
Product Brand: NICHICON
Features
- Nichicon PS Series Capacitors. Nichicon PS Series Aluminium Electrolytic Capacitors are high reliability polymer capacitors which are rated up to 3000 hours. The PS series capacitors offer a high temperature range, high voltage, low impedance and high ripple current. Features ; Benefits:. High reliability High ripple current Long life up to 3000 hours Lead free reflow soldering Low ESR. Wide temperature range Miniature sized
Spec
- Quantity：1bag(5pieces)
- Capacitance : 2200µF
- Voltage : 35V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 16 (Dia.) x 31.5mm
- Height : 31.5mm
- Minimum Operating Temperature : -55°C
- Diameter : 16mm
- Maximum Operating Temperature : +105°C
- Lead Pitch : 7.5mm
- Series : PS
- Ripple Current : 2.35A
- CODE No.:519-4217
