Electronic/Electrical Parts and Controll Equipments

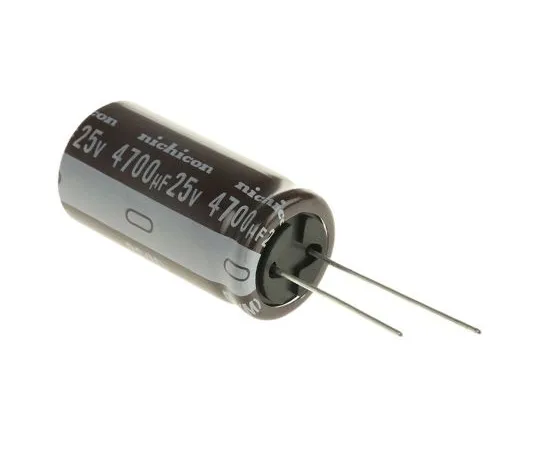

63-4845-75 Nichicon 4700μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 18 (Dia.) x 35.5mm +105°C 18mm 7.5mm UPS1E472MHD
Product Description
Product Model: 63-4845-75Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4845-75
Product Brand: NICHICON
Features
- Nichicon PS Series Capacitors. Nichicon PS Series Aluminium Electrolytic Capacitors are high reliability polymer capacitors which are rated up to 3000 hours. The PS series capacitors offer a high temperature range, high voltage, low impedance and high ripple current. Features ; Benefits:. High reliability High ripple current Long life up to 3000 hours Lead free reflow soldering Low ESR. Wide temperature range Miniature sized
Spec
- Quantity：1bag(5pieces)
- Capacitance : 4700µF
- Voltage : 25V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 18 (Dia.) x 35.5mm
- Height : 35.5mm
- Minimum Operating Temperature : -55°C
- Diameter : 18mm
- Maximum Operating Temperature : +105°C
- Lifetime : 3000h
- Series : PS
- Leakage Current : 4 μA
- CODE No.:519-4122
