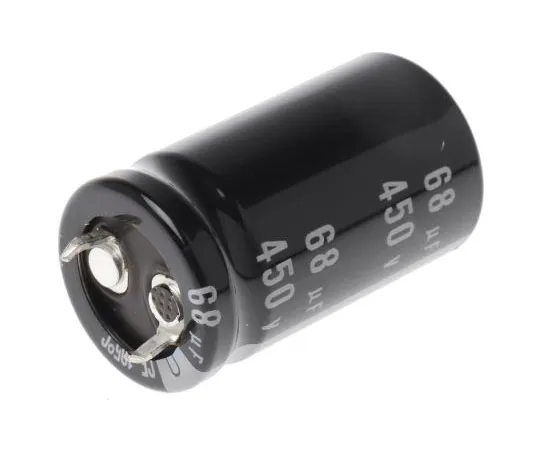

63-4845-44 Nichicon 68μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 20 (Dia.) x 35mm +105°C 20mm 10mm LGU2W680MELY
Product Description
Product Model: 63-4845-44Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4845-44
Product Brand: NICHICON
Features
- Nichicon GU Series. Nichicon GU Series Snap-In Aluminium Electrolytic Capacitors can withstand 3000 hours of rated ripple current application. The snap-in terminal GU Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 16 to 450V. These high performance capacitors have a wide temperature range which is ideal for applications such as uninterruptible power supplies, electric pump motors, and AC servomotors. Snap-In terminals Endurance rating ripple current 3000 hours guaranteed PET sleeve (non PVC) Lead-free terminal plating
Spec
- Quantity：1piece
- Capacitance : 68µF
- Voltage : 450V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 20 (Dia.) x 35mm
- Height : 35mm
- Minimum Operating Temperature : -25°C
- Diameter : 20mm
- Maximum Operating Temperature : +105°C
- Lead Pitch : 10mm
- Series : GU
- Leakage Current : 520 μA
- CODE No.:519-3753
