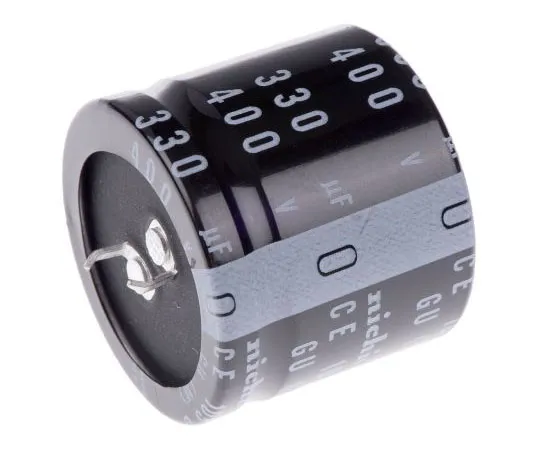

63-4845-43 Nichicon 330μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 30mm +105°C 35mm 10mm LGU2G331MELC
Electronic/Electrical Parts and Controll Equipments

63-4845-43 Nichicon 330μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 30mm +105°C 35mm 10mm LGU2G331MELC

model: 63-4845-43
brand: NICHICON

Product Description

Product Model: 63-4845-43Product Brand: NICHICON Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4845-43
Product Brand: NICHICON

Features

  • Nichicon GU Series. Nichicon GU Series Snap-In Aluminium Electrolytic Capacitors can withstand 3000 hours of rated ripple current application. The snap-in terminal GU Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 16 to 450V. These high performance capacitors have a wide temperature range which is ideal for applications such as uninterruptible power supplies, electric pump motors, and AC servomotors. Snap-In terminals Endurance rating ripple current 3000 hours guaranteed PET sleeve (non PVC) Lead-free terminal plating

Spec

  • Quantity:1piece
  • Capacitance : 330µF
  • Voltage : 400V dc
  • Mounting Type : Through Hole
  • Technology : Electrolytic
  • Dimensions : 35 (Dia.) x 30mm
  • Height : 30mm
  • Minimum Operating Temperature : -25°C
  • Diameter : 35mm
  • Maximum Operating Temperature : +105°C
  • Lifetime : 3000h
  • Series : GU
  • Leakage Current : 1080 μA
  • CODE No.:519-3725
