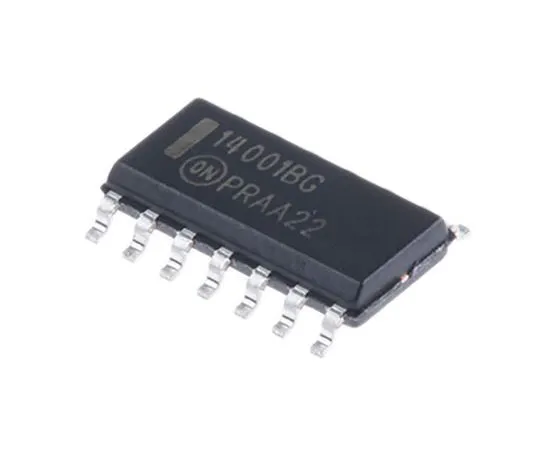

63-4845-10 ON Semiconductor MC14001BDG, Quad 2-Input NOR Logic Gate, 14-Pin SOIC MC14001BDG
model:
63-4845-10
brand:
ON Semiconductor
Product Description
Product Model: 63-4845-10Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4845-10
Product Brand: ON Semiconductor
Features
- 4000 Series Logic Gates, ON Semiconductor
Spec
- Quantity：1piece
- Logic Function : NOR
- Mounting Type : Surface Mount
- Number of Elements : 4
- Number of Inputs per Gate : 2
- Schmitt Trigger Input : No
- Package Type : SOIC
- Pin Count : 14
- Logic Family : 4000
- Maximum Operating Supply Voltage : 18 V
- Maximum High Level Output Current : -4.2mA
- Maximum Propagation Delay Time @ Maximum CL : 100 ns @ 10 V, 250 ns @ 5 V, 80 ns @ 15 V
- Minimum Operating Supply Voltage : 3 V
- Maximum Low Level Output Current : 4.2mA
- Minimum Operating Temperature : -55 °C
- CODE No.:518-8616
