Electronic/Electrical Parts and Controll Equipments

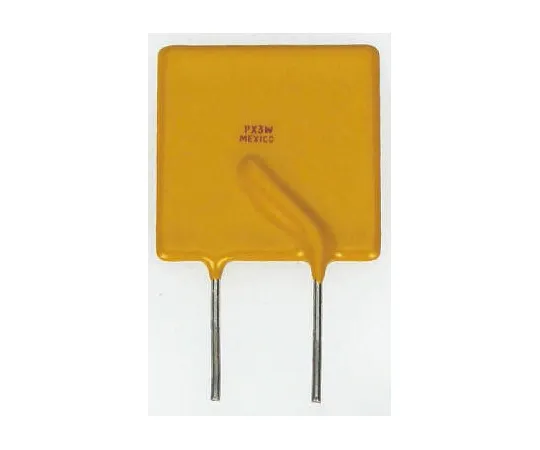

63-4844-52 Littelf*** 7A Hold current, Radial Leaded PCB Mount Resettable F***, 16V RGEF700
Product Description
Product Model: 63-4844-52Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-4844-52
Product Brand: Littelfuse
Features
- PolySwitch™ RUEF ; RGEF Series
Spec
- Quantity：1bag(5pieces)
- Lead Orientation : Radial
- Trip Current : 11.9A
- Time to Trip : 3.5s
- Hold Current : 7A
- Voltage Rating : 16V
- Maximum Current : 100 A
- Minimum Resistance : 0.008Ω
- Maximum Resistance : 20mΩ
- Power Dissipation : 3W
- Body Height : 19.7mm
- Body Length : 11.2mm
- Body Width : 3mm
- Wire Pitch : 4.3 → 5.8mm
- Wire Length : 7.6mm
- Wire Diameter : 0.81mm
- CODE No.:517-6950
