Electronic/Electrical Parts and Controll Equipments

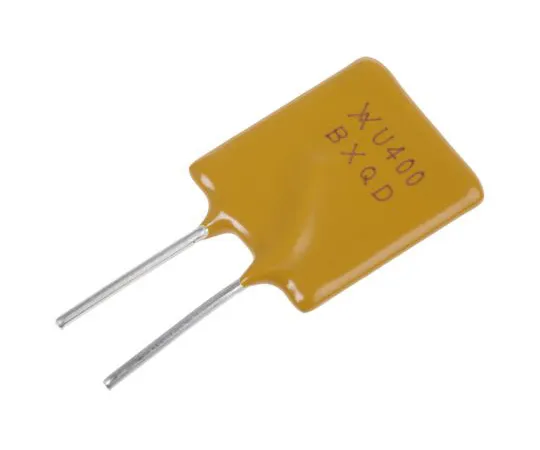

63-4844-44 Littelf*** 4A Hold current, Radial Leaded PCB Mount Resettable F***, 30V dc RUEF400
Product Description
Product Model: 63-4844-44Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-4844-44
Product Brand: Littelfuse
Features
- PolySwitch™ RUEF ; RGEF Series
Spec
- Quantity：1bag(10pieces)
- Lead Orientation : Radial
- Trip Current : 8A
- Time to Trip : 12.7s
- Hold Current : 4A
- Voltage Rating : 30V dc
- Maximum Current : 100 A
- Minimum Resistance : 0.01Ω
- Maximum Resistance : 50mΩ
- Power Dissipation : 2.5W
- Body Height : 19.3mm
- Body Length : 14mm
- Body Width : 3mm
- Wire Pitch : 4.3 → 5.8mm
- Wire Length : 7.6mm
- Wire Diameter : 0.81mm
- CODE No.:517-6837
