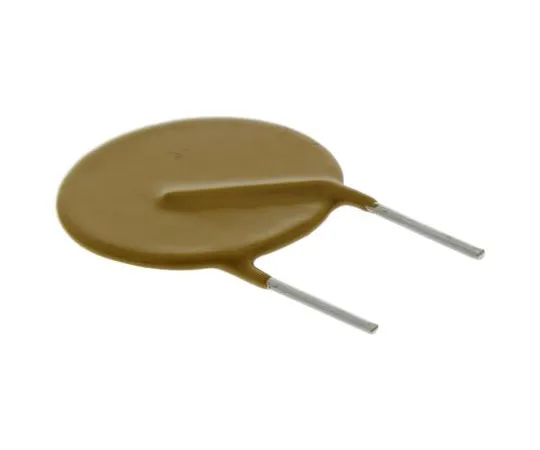

63-4844-36 Littelf*** 2.5A Hold current, Radial Leaded PCB Mount Resettable F***, 72V RXEF250
Product Description
Product Model: 63-4844-36Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-4844-36
Product Brand: Littelfuse
Features
- PolySwitch™ RXE Series. TE PolySwitch™ RXE represents series of low hold current (down to 50mA) and high voltage rating (up to 72V) devices. Typically ***d in printers, satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports and peripherals, game machines, phones, fax machines, analog and digital line cards applications. Current ratings from 50mA to 15A Voltage ratings from 6V (computer and electronic applications) to 99V Fast time-to-trip Low resistance RoHS compliant Halogen free
Spec
- Quantity：1bag(10pieces)
- Lead Orientation : Radial
- Trip Current : 5A
- Time to Trip : 16s
- Hold Current : 2.5A
- Voltage Rating : 72V
- Maximum Current : 40 A
- Minimum Resistance : 0.05Ω
- Maximum Resistance : 130mΩ
- Power Dissipation : 2.5W
- Body Height : 25.4mm
- Body Length : 20.8mm
- Body Width : 3mm
- Wire Pitch : 9.4 → 10.9mm
- Wire Length : 7.6mm
- Wire Diameter : 0.81mm
- CODE No.:517-6736
