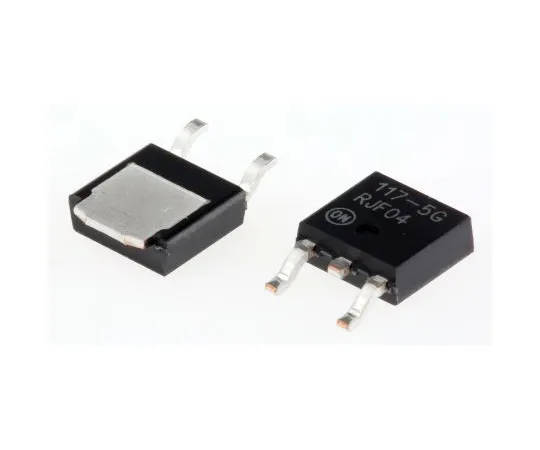

63-4843-46 ON Semiconductor NCP1117DT50G, LDO Regulator, 1A, 5 V, ±1% 3-Pin, DPAK NCP1117DT50G
Electronic/Electrical Parts and Controll Equipments

63-4843-46 ON Semiconductor NCP1117DT50G, LDO Regulator, 1A, 5 V, ±1% 3-Pin, DPAK NCP1117DT50G

model: 63-4843-46
brand: ON Semiconductor

Product Description

Product Model: 63-4843-46Product Brand: ON Semiconducto […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4843-46
Product Brand: ON Semiconductor

Features

  • NCP1117 and NCV1117 Series LDO Regulators, ON Semiconductor. The NCP1117 and NCV1117 series of LDO positive fixed and adjustable voltage regulators have an output current in excess of 1A. Available in either SOT-223 or DPAK packages, they also come in a range of different output voltage options, fixed or adjustable. The fixed voltages have no minimum load requirement to maintain regulation. There is also adjustable output voltage options which can be programmed from 1.25 to 18.8 V. In comparison to other three-terminal adjustable regulators, the NCP1117 devices feature a large reduction in dropout voltage with improved output voltage accuracy and temperature stability. Output current in excess of 1A Fixed or variable voltage options 1.2V Dropout Voltage (max) @ 800mA Over Temperature Current limit and thermal shutdown protection NCV part numbers are for automotive applications. Applications Consumer and Industrial Equipment Point of Regulation Active SCSI Termination for 2.85 V Version Switching Power Supply Post Regulation Hard Drive Controllers Battery Chargers

Spec

  • Quantity:1bag(5pieces)
  • Output Voltage : 5 V
  • Output Type : Fixed
  • Package Type : DPAK
  • Maximum Output Current : 1A
  • Mounting Type : Surface Mount
  • Maximum Input Voltage : 20 V
  • Pin Count : 3
  • Number of Outputs : 1
  • Quiescent Current : 3.6mA
  • Accuracy : ±1%
  • Minimum Operating Temperature : 0 °C
  • Maximum Operating Temperature : +125 °C
  • Width : 6.22mm
  • CODE No.:516-5871
