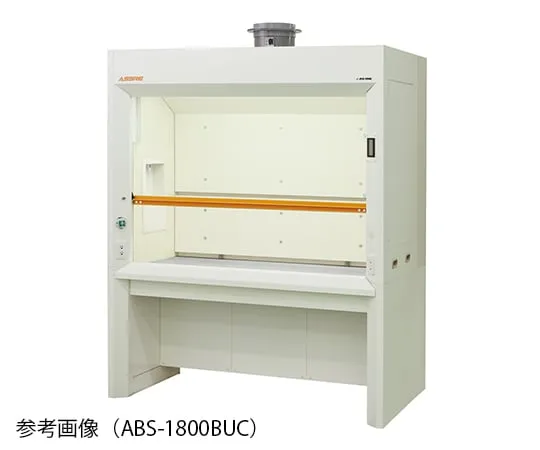

3-4159-04 Fume Hood Deep (dry type Scrubber rear mounting type) 1200 × 1230 × 2250mm ABD-1200BUC
Product Description
Product Model: 3-4159-04Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-4159-04
Product Brand: AS ONE Corporation
Features
- This type combines a dry scrubber on the back of the hood.
- The compact design emphasizes the adsorption effect of activated carbon and ***s a cartridge type that is easy to replace.
Spec
- Model number: ABD -1200 BUC
- specifications: deep
- external dimension (mm): 1200 x 1230 x 2250
- inner size (mm): 950 x 755 x 1200
- Exterior: Steel (powder coating finish)
- Interior: chemical resistant Heat-Resistant Board (Flame-Retardant material/phenolic laminated sheet or glass fiber mixed polyester)
- Work Plane: Epoxy Plastic top board Integral Part (32 mm Atsushi)
- Lifting sash: tempered glass (5 mm Atsushi) with balance weight opening restriction key (400 mm Height), Handle/ABS Plastic
- Hydrant: chemical coating Remote Operated Water Connection G 1/2 (Stop Female thread)
- drain port: Plastic Drainage connector 40 A socket with a built-in sink and trap
- Outlet: AC100V -15 A2 grounded
- lighting: Hf fluorescent lamps
- Operating Switch: Touch Panel Lighting/Fan
- Safety Function: Exhaust Air air volume Display
- Exhaust Connections: PVC (Plastic vinyl chloride ) with Volume Damper Phase Flanged
- power supply connection part: Terminal block with electric box
- Rear dry type with a full scrubber unit
- *Shipping, carrying-in, installation, assembly, etc. are required separately. Please contact us.
- *Exhaust fan is not included.
- exhaust
- Work Sash Opening Height (mm): 400
- Controlled wind speed (m/s): 0.5
- air volume (m3/min): 12
- Duct Connector: 200 A
- Required duct diameter (Φ mm): 200
- Static pressure (Pa): 400
- ancillary equipment
- Activated charcoal: 25.6 kg of 32 pieces and Weight cassettes
- Plumbing (place): 1
- fluorescent lamps (bottle): 2 x 16 W
- Outlet (place): 2
