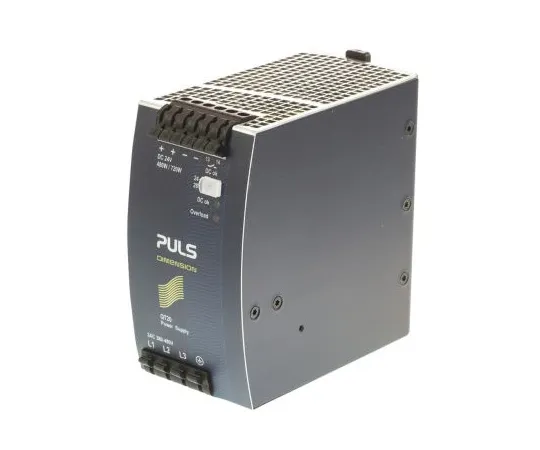

63-4842-59 PULS, DIMENSION Q DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 20A output current QT20.241
Electronic/Electrical Parts and Controll Equipments

63-4842-59 PULS, DIMENSION Q DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 20A output current QT20.241

model: 63-4842-59
brand: PULS

Product Description

Product Model: 63-4842-59Product Brand: PULS Features D […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4842-59
Product Brand: PULS

Features

  • Dimension Q Series. The Q-Series DIN rail power supplies from PULS are small in size yet offer high efficiency thanks to novel design details and synchronous rectification. With short-term peak power capability of 150% and built-in large sized output capacitors, these features **** start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be ***d. High immunity to transients and power surges as well as low electromagnetic emission make these PSU,s usable in nearly every environment possible. The integrated output power manager, a wide range input voltage design and virtually no input inrush current make installation and usage simple. The Q-Series power supplies diagnostics are easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes these PSU's suitable for nearly every situation. Single-phase or three-phase units from 80 to 960W Active power factor correction Minimal inrush current 50% power reserves for typ. 4s controlled by an intelligent power manager Quick-connect spring-clamp terminals DC-ok LED and overload LED DC-ok relay contact DC Input from 88-375V for single phase Active filtering of input transients Short term operation down to 60Vac and up to 300Vac Parallel and serial ***

Spec

  • Quantity:1piece
  • Input Voltage : 400V ac
  • Output Voltage : 24V dc
  • Output Current : 20A
  • Power Rating : 480W
  • Electrical Phase : 3
  • Type : Switch Mode
  • Width : 65mm
  • MTBF : 1194000h
  • CODE No.:514-5603
