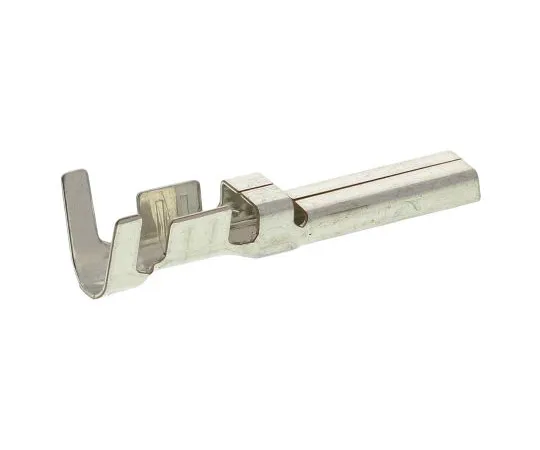

63-4842-37 JST VL Male Crimp Terminal Contact 14AWG BVM-61T-P2.0 BVM-61T-P2.0
Product Description
Product Model: 63-4842-37Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4842-37
Product Brand: JST
Features
- JST VL Series Crimp Contacts and Cable Assemblies. Crimp contacts and cable assemblies for *** in the VL series wire to wire crimp connector housings. The crimp pin and receptacle contacts are made from phosphor bronze with a tin plating and accept a wire size range of 20 to 14 AWG. Stock numbers ; 820-1119 820-1119 , ; 820-1113 820-1113 , ; 820-1122 820-1122 and ; 820-1125 820-1125 are VL series crimp cable assemblies terminated either *** with crimp receptacle or crimp pin contacts. ; 820-1119 820-1119 VL Double ***ed Cable Assembly, Wire Style UL1015, with female Contacts, 150 mm long ; 820-1113 820-1113 VL Double ***ed Cable Assembly, Wire Style UL1015, with female Contacts, 300 mm long ; 820-1122 820-1122 VL Double ***ed Cable Assembly, Wire Style UL1015, with male Contacts, 150 mm long ; 820-1125 820-1125 VL Double ***ed Cable Assembly, Wire Style UL1015, with male Contacts, 300 mm long
Spec
- Quantity:1bag(100pieces)
- G***er : Male
- For Use With : VL Connector Housing
- Series : VL
- Minimum Wire Size mm² : 0.5mm²
- Termination Method : Crimp
- Contact Plating : Tin
- Maximum Wire Size AWG : 14AWG
- Maximum Contact Resistance : 10mΩ
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +90°C
- CODE No.:512-9241
