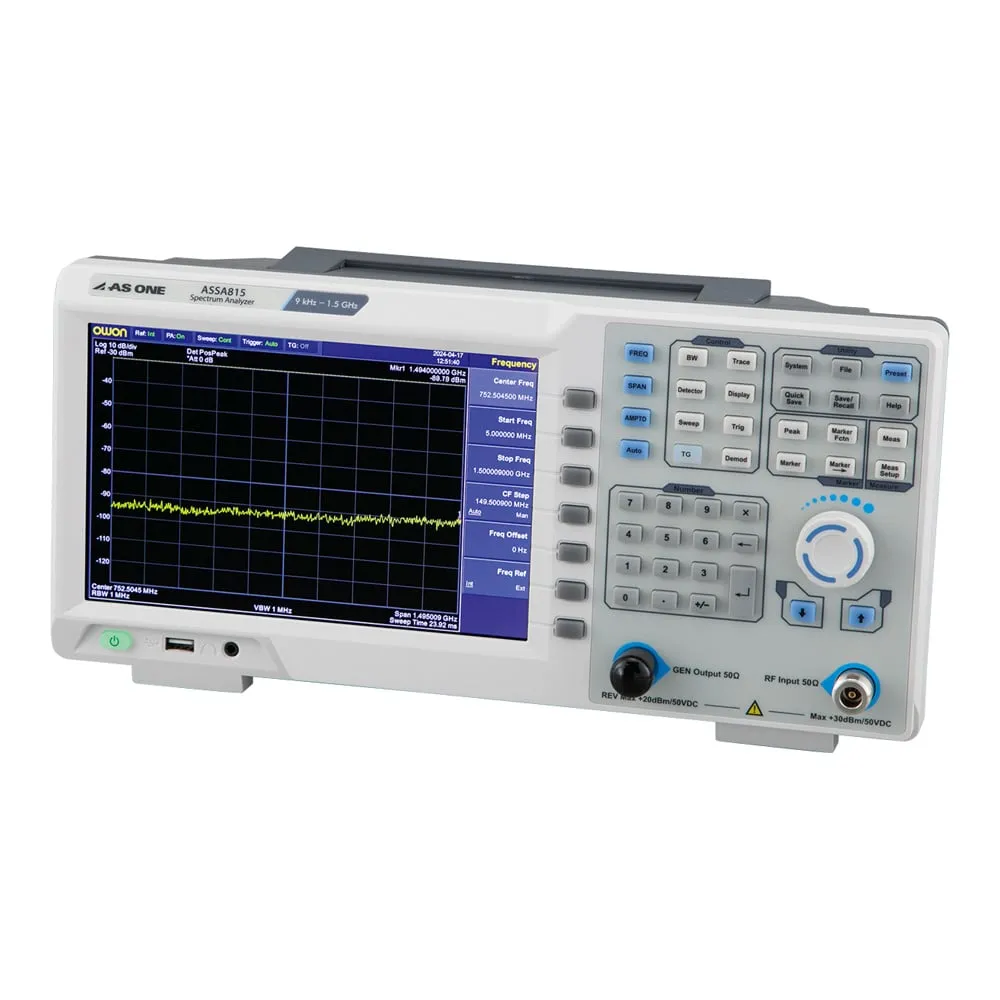

4-5742-01 spectrum analyzer ASSA815
Product Description
Product Model: 4-5742-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-5742-01
Product Brand: AS ONE Corporation
Spec
- Frequency range: 9 kHz to 1.5 GHz
- Frequency resolution: 1 Hz
- External Dimensions: 375 x 120 x 185 mm
- Body Weight: 3.7 kg
- Power: 100 VAC 50/60Hz 0.22 A
- Internal reference clock temperature stability <0.5ppm
- Resolution bandwidth (RBW): 1 Hz to 1 mHz
- Internal reference clock aging rate <1ppm/year
- SSB phase noise <-80dBc/Hz
- Display average noise level (DANL): <-160dBm
- Level measurement uncertainty: ±0.7dB
- Display: 9 ” LCD (1280 x 800 pixels)
- *This product is not equipped with a tracking generator function.
