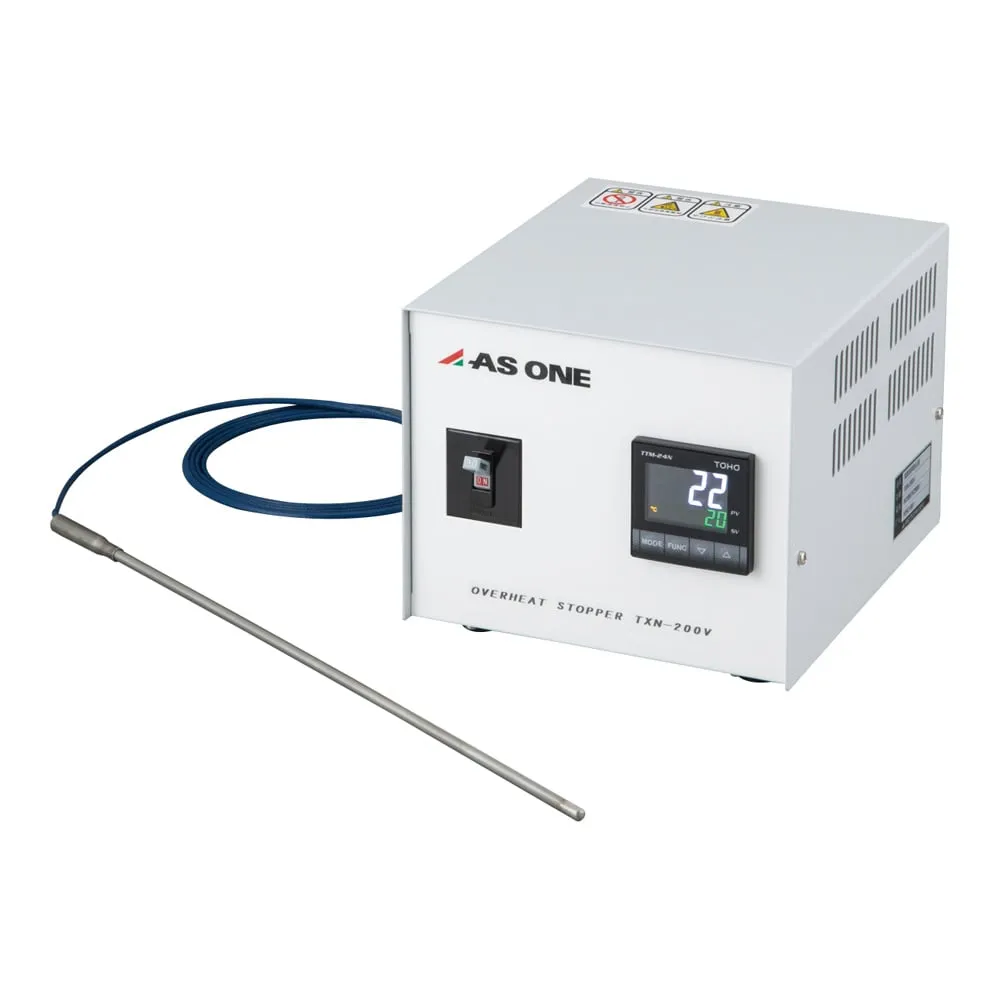

4-5711-01 Excess Temperature Rise Prevention Device (Single Phase 200 V Possible Type) 0~500°C 160 x 185 x 130 mm TXN-200V
Product Description
Product Model: 4-5711-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-5711-01
Product Brand: AS ONE Corporation
Spec
- Input power: 100 VAC/200 VAC (single phase)
- Temperature Setting Range (°C): 0~500
- Input Voltage: 100 VAC/200 VAC 50/60Hz
- Output (Connection) Capacity: 100 VAC/200 VAC 25 A 50/60Hz
- Temperature Control System: ON/OFF Control
- Output control method: voltage output by relay contact
- Power cord: None (connected to the power terminal on the rear terminal block)
- Terminal block: Sensor/M3, Power supply/M5
- Supported Sensor: Pt100Ω, K Thermocouple
- Timer Function: Auto Start, Auto Stop, SV Start
- Safety device: Overcurrent breaker
- Size: 160 x 185 x 130 mm
- *Sensor not included.
