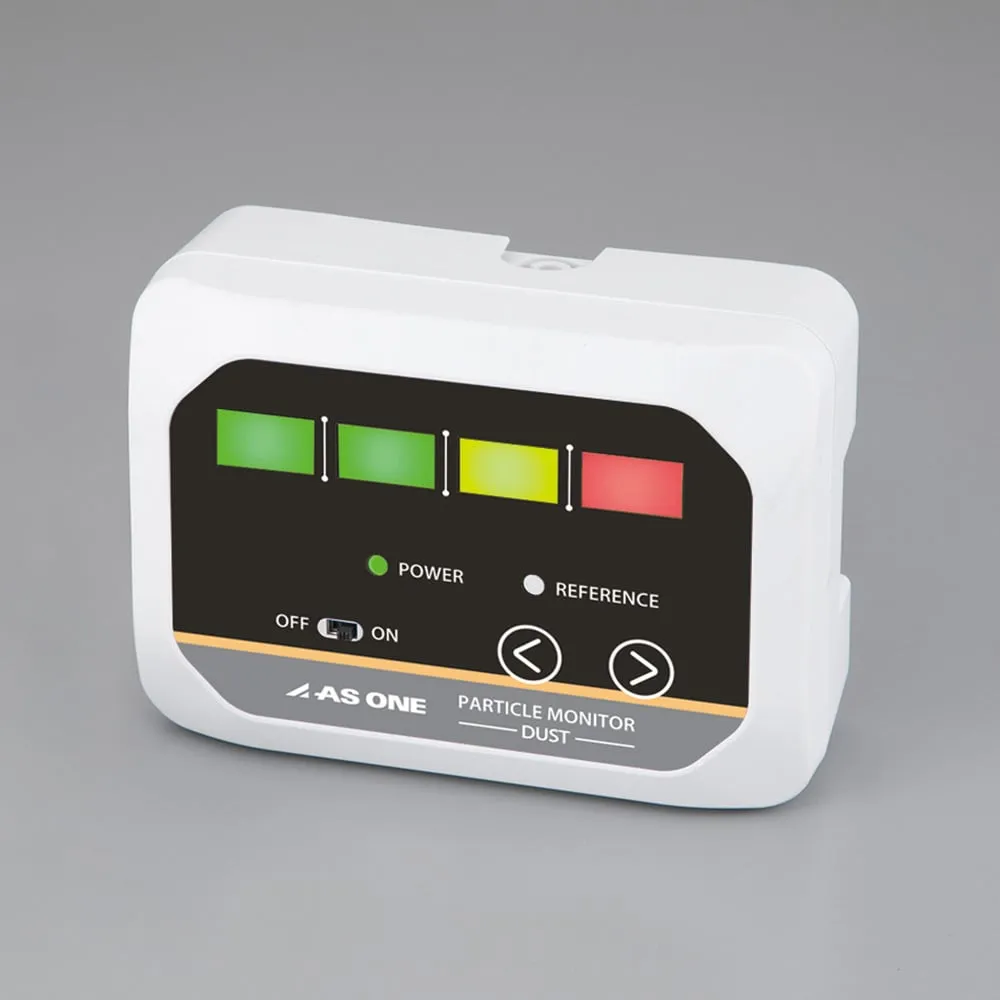

4-5577-01 Particle Monitor (dust meter) PA-DL
Product Description
Product Model: 4-5577-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-5577-01
Product Brand: AS ONE Corporation
Features
- Particles susp***ed in air can be easily measured and displayed using the light scattering method.
- The dust concentration is ***ful in the work environment for occupational health and safety management.
- Multi-point measurement and constant monitoring at various locations are possible.
- It is possible to visualize the air environment around the work site and inside the factory.
- Continuous monitoring is possible, and abnormalities can be notified instantly.
- The dust concentration (μg/m3) can be displayed with 4 levels of LED.
- Linear measurement up to approximately 300 μg/m3 is possible.
Spec
- Measurement range: 0.0~300.0 μg/m3 * 1
- Output unit: 0.1 μg/m3 * 2
- light sources: laser diodes
- Measurement method: Light scattering method
- Measurement sensitivity: 1CPM=0.1 μg/m3 * 3 against our company's standard tobacco smoke (correction factor 1)
- Sampling method: Fan suction
- Data Output Values: 60 second average
- Data refresh time: 1 second
- Temperature and humidity measurement function: x
- Analog output: 0
- Digital Communications: No
- Alarm output: Yes
- Power: 12~24 VDC
- Digital communication system: Ethernet, Wi-Fi
- Accessory: AC Adapter 100~240 VAC 50/60Hz
- Size (mm): 120 x 46.5 x 87
- Weight (g): about 210
- Quantity: 1 Piece
- *1. Do not *** the product in an environment that greatly exceeds the measurement range, or in an environment where you are directly exposed to metal powder at work sites such as welding.
- *2 CPM is not output.
- *(3) For our company standard tobacco smoke (= correction factor 1) (correction factor can be changed on evaluation software).
