Electronic/Electrical Parts and Controll Equipments

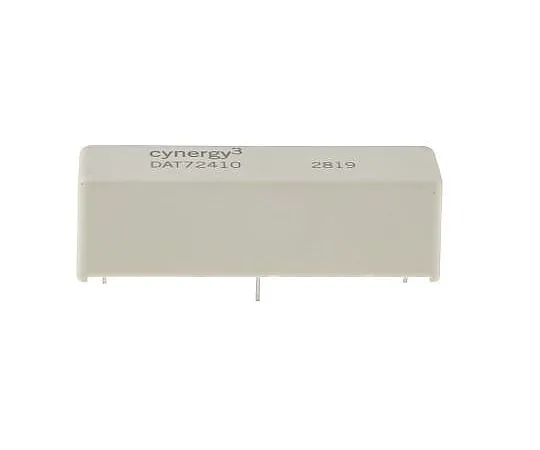

63-4841-19 SPNO Reed Relay, 24V dc DAT72410
Product Description
Product Model: 63-4841-19Product Brand: Cynergy3 Featur […]
Contact Us
Product Details
Product Model: 63-4841-19
Product Brand: Cynergy3
Features
- HV Vacuum Encapsulated D Series. These high voltage PCB and panel mount reed relays have high isolation voltages of up to 15kV. Applications include test equipment and high voltage power supplies. All models are highly reliable and are of extremely good quality. High power switching Through hole PCB & panel mount or flying lead versions 15kV high isolation versions available Tungsten contacts enable high voltage switching
Spec
- Quantity：1piece
- Contact Configuration : SPNO
- Coil Voltage : 24V dc
- Mounting Type : PCB Mount
- Maximum Switching Voltage AC : 7000V
- Maximum Switching Voltage DC : 7000V dc
- Coil Resistance : 780 Ω
- Length : 60mm
- Height : 18.5mm
- Depth : 15.8mm
- Dimensions : 60 x 15.8 x 18.5mm
- Isolation Coil To Contact : 17kV ac/dc
- Minimum Operating Temperature : -20°C
- CODE No.:511-1313
