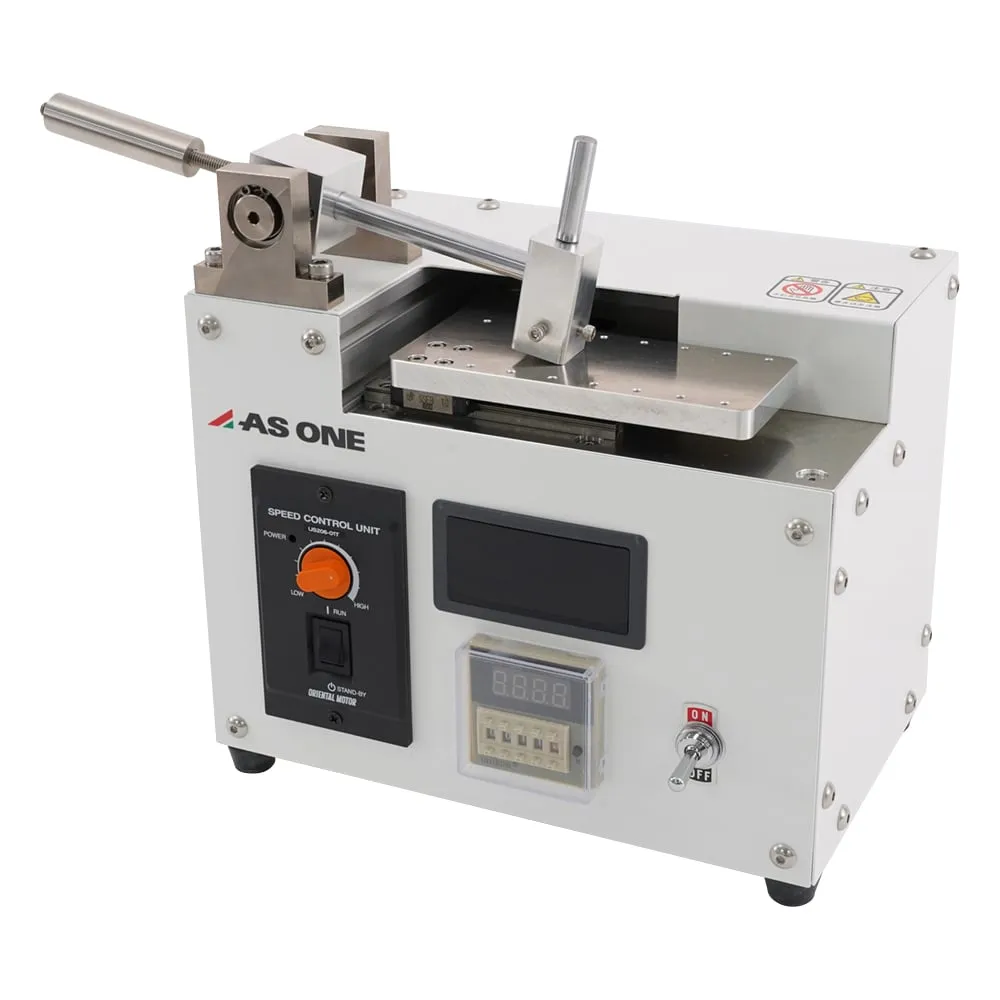

4-4557-01 Simple reciprocating wear tester approx. 7kg MMS-1
Product Description
Product Model: 4-4557-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-4557-01
Product Brand: AS ONE Corporation
Features
- This is a simple wear tester that moves back and forth just by turning the power on.
- The tip tool can be fitted with a standard phi 3 mm router bit.
- It has weights for leveling.
- Equipped with a counter timer, you can stop round-trip operation at the desired travel distance.
- By abrading rubber, plastic, painted or plated surfaces, the degree of surface wear and wear resistance can be evaluated visually.
Spec
- Size (mm): 330 x 153 x 262 * Including protrusions
- Weight (kg): approximately 7
- Number of pieces: 1
- Return (travel) speed: 220 ~ 1210 mm/min
- Distance moved (stroke): 22 mm
- Stage size: 130 x 55 mm
- Specimen size: Up to 3 mm (thickness)
- Driving system: eccentric cam system
- Material: Body/Steel (Melamine Baked Paint), Arm/SUS 304
- Safety device: Overcurrent f***
- Power supply: 100 VAC 50/60 Hz 3 P plug
- Cord length: 2 m
- Accessories: Diamond Bit Spherical Shape (Phi5 mm)
- *Dedicated to the .PHI.3 mm router bit. If you want a different indenter, we can make a special order.
