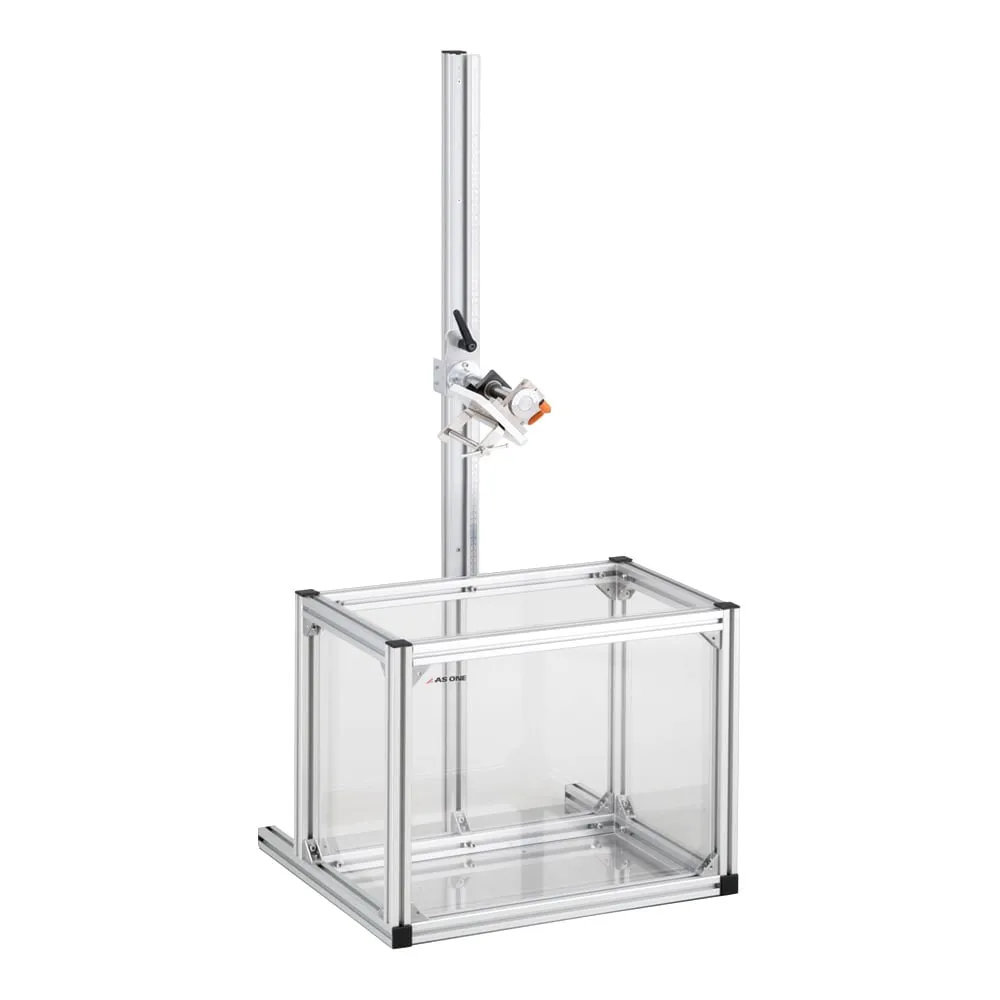

4-4555-01 Basic drop tester RKS-1
Product Description
Product Model: 4-4555-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-4555-01
Product Brand: AS ONE Corporation
Features
- This tester holds the sample in the chuck and allows it to fall naturally from any set height and angle.
- The height and angle are calibrated for excellent reproducibility.
- 3 You can drop it on 6 sides of the ridge.
- Durability, strength, etc. can be evaluated visually.
Spec
- Size (mm): 560 x 500 x 1235
- Weight (kg): approximately 18
- Number of pieces: 1
- Chuck Opening Width: 100 mm
- Chuck Depth: 48 mm
- Estimated chuck travel width: 460 ~ 1140 mm * Distance of the chuck shaft center from the bottom surface
- Height adjustment width: Stepless optional (1 mm between scales)
- Angle Adjustment Width: -90 to + 90 degrees Stepless Optional (5 degrees between scales)
- Material: Drop tube/column/aluminum, bottom plate/SUS 304, side/PMMA (acrylic)
- Accessories: Rawan (thickness/30 mm)
