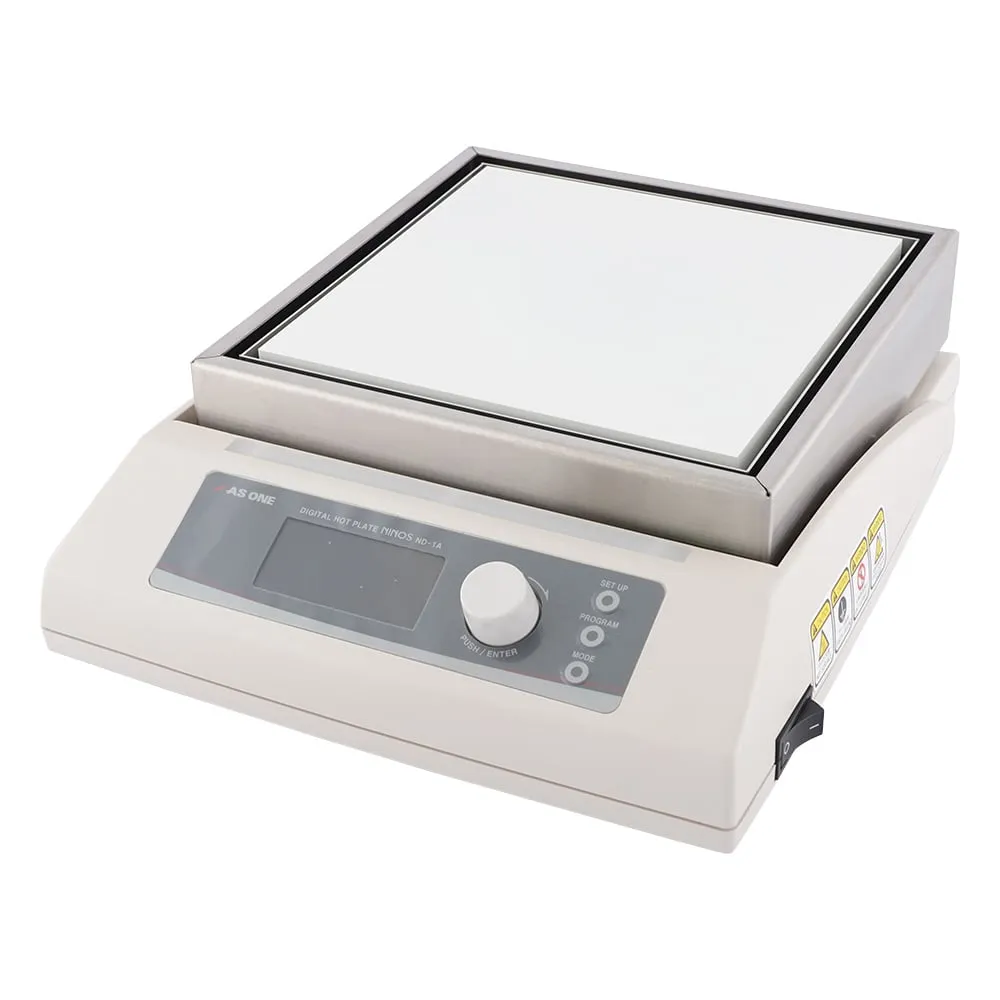

1-4601-31-22 Hot Plate (NINOS) 350°C 170 x 170 mm with Pre-Shipment Inspection Document ND-1A
Product Description
Product Model: 1-4601-31-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4601-31-22
Product Brand: AS ONE Corporation
Features
- Highly accurate temperature control is possible using microcomputer PID control.
- The display ***s a liquid crystal screen with excellent visibility.
- Equipped with 4 types of timer function (ON/OFF/ON/OFF/SET) as standard, and the program function can input temperature and time up to 8 steps.
- With dedicated software (CDROM) and communication cable (optional) for data recording and communication, you can easily manage data on your PC.
- The sample temperature can be directly controlled using an external temperature sensor (optional).
- Equipped with an alarm signal output as standard, it is possible to stop other equipment and start the backup system in the event of an error.
- A safety lamp is provided between the main unit front operating section and the hot plate section (lights up until the top plate temperature drops below 55°C).
- The safety device ***s a double lock mechanism consisting of two indep***ent circuits.
- The temperature rises to the maximum in approximately 30 minutes.
- Top plate temperature distribution width is highly accurate at 4°C (at 200°C setting).
Spec
- Maximum temperature (°C): 350
- Plate Size (mm): 170 x 170
- Temperature Setting Range: Room Temperature +10~350°C
- Temperature Setting: Digital Input Type
- Temperature Distribution Width: 4°C(The temperature distribution width is a reference value for an indoor environment of 25°C(No wind, no load, internal sensor ***d) and 200°C.)
- Temperature control system: microcomputer PID control system, ON/OFF control system
- Temperature Display Method: LCD Digital Display (Setting/Measurement Temperature Simultaneous Display/Heater Output Bar Graph Display)
- Internal Temperature Sensor: K Thermocouple
- Safety Devices: Self-Diagnosis Function (Upper and Lower Limit Temperature Abnormality Detection, Heater Abnormality Detection, Sensor Abnormality Detection), Abnormal Heating Prevention Device (Thermostat), Overcurrent F***
- Heater Capacity: 680 W
- additional function
- Timer: Setting Range/1 Minute to 99 Hours 59 Minutes (1 Minute Increments)
- Program Function: Number of Steps/Max. 8 Steps, Number of Repeats/Max. 9999 Times
- Setting Resolution/Temperature 0.1°C/Time 1 min
- Communication function: PC output (USB)
- Support for external temperature sensor
- upper and lower limit temperature alarm
- Alarm signal output
- Setting value memory function
- Key lock function
- autotuning function
- Top Plate Material: Aluminum (Ceramic Coating)
- Supported OS: Windows (R) XP/SP3/Vista (R)/7/8/10 (32/64bit)
- Size: 240 x 280 x 101 mm
- Power: 100 VAC 50/60Hz
- Power Cord Length: Approx. 2 m
- < a href="https://axel.as-1.co.jp/images/pdf/pb/1-4/DAQMaster_for_ASONE_1.0.0.60.zip" rel="noopener nofollow" target="_blank" > Download the dedicated application (1.0.0.60) here < /a >
- Supported OS: Windows (R) XP/SP3/Vista (R)/7/8/10 (32/64bit)
