Electronic/Electrical Parts and Controll Equipments

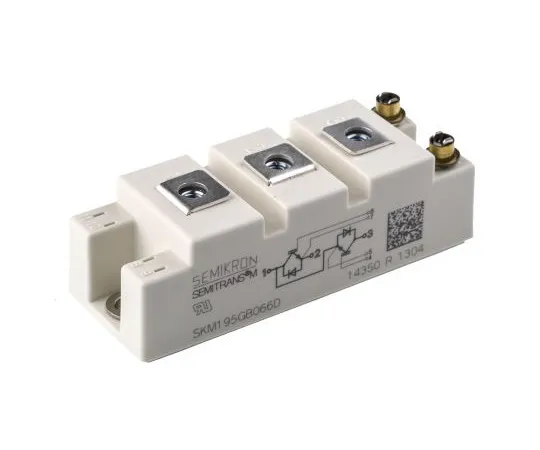

63-4838-73 Semikron SKM195GB066D, SEMITRANS2 , N-Channel Dual Half Bridge IGBT Module, 265 A max, 600 V, Panel Mount SKM195GB066D
Product Description
Product Model: 63-4838-73Product Brand: Semikron Featur […]
Contact Us
Product Details
Product Model: 63-4838-73
Product Brand: Semikron
Features
- Dual IGBT Modules. A range of SEMITOP® IGBT modules from Semikron incorporating two series-connected (half bridge) IGBT devices. The modules are available in a wide range of voltage and current ratings and are suitable for a variety of power switching applications such as AC inverter motor drives and Uninterruptible Power Supplies. Compact SEMITOP® package Suitable for switching frequencies up to 12kHz Insulated copper baseplate using Direct Bonded Copper technology
Spec
- Quantity：1piece
- Configuration : Dual Half Bridge
- Maximum Continuous Collector Current : 265 A
- Maximum Collector Emitter Voltage : 600 V
- Maximum Gate Emitter Voltage : ±20V
- Channel Type : N
- Mounting Type : Panel Mount
- Package Type : SEMITRANS2
- Pin Count : 7
- Dimensions : 94 x 34 x 30.5mm
- Height : 30.5mm
- Length : 94mm
- Maximum Operating Temperature : +175 °C
- Minimum Operating Temperature : -40 °C
- CODE No.:505-3144
