Electronic/Electrical Parts and Controll Equipments

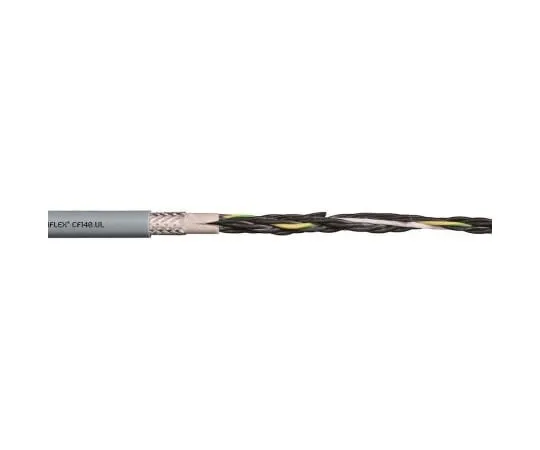

63-4837-01 Igus 7 Core Tinned Copper Braid Industrial Cable, 0.75 mm² Grey 10m Reel, Chainflex CF140.UL Series CF140.07.07.UL
Product Description
Product Model: 63-4837-01Product Brand: Igus Features C […]
Contact Us
Product Details
Product Model: 63-4837-01
Product Brand: Igus
Features
- CE, UL. Use in environments unaffected by oils and resins. With 300 / 500 V CF140 shields Control cable. Igus CF140.UL Chainflex control cable for medium load requirements. Chainflex cables have been designed for durability and to reduce downtime due to cable failure. Features and Benefits. Flame retardant. CFRIP® tear strip. Silicone-free. Abrasion-resistant jacket material. No corkscrewing. High tensile strength core element
Spec
- Quantity：1roll(10m)
- Number of Cores : 7
- Cross Sectional Area : 0.75 mm²
- Screened/Unscreened : Screened
- Length : 10m
- Outer Diameter : 10mm
- Screen Type : Tinned Copper Braid
- Voltage Rating : 500 V
- Sheath Material : Polyvinyl Chloride PVC
- American Wire Gauge : 18 AWG
- Insulation Material : TPE
- Sheath Colour : Grey
- Minimum B*** Radius : 15 x Diameter
- CODE No.:502-3020
