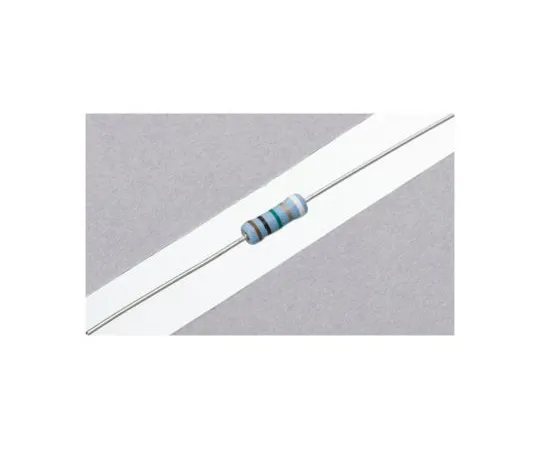

63-4836-41 Surge Resistant RCR 60 Series 470 kΩ 1 W ± 5% RCR60C474J
Product Description
Product Model: 63-4836-41Product Brand: KOA Features EN […]
Contact Us
Product Details
Product Model: 63-4836-41
Product Brand: KOA
Features
- EN60065 (BSI, VDE), UL1676, c-UL
- Insulation coating surge resistant fixed resistor, 1 W
- Resistor with excellent surge resistance characteristics Humidity resistant edge surface material stable even at high resistance value Lead free chromium discharge resistor standard UL1676 and c-UL (CSA-C22.2 No. 1-M94) (1M→12 MΩ) Approved safety standard EN60065 CLASS II (470 k→56 MΩ) Approved
Spec
- Quantity: 1 bag (10 pieces)
- Resistance: 470 kΩ
- Rating Power: 1 W
- Tolerance: ± 5%
- case styles: formal
- Temperature Coefficient: ± 350 ppm/deg.
- *** styles: axial
- Dimensions : 3.5 (Dia.) x 9.5 mm
- Length: 9.5 mm
- Diameter: 3.5 mm
- Minimum temperature coefficient: -350 ppm/deg.
- RoHS Compliance Status: Compliance
- Securities Code: 502 - 0920
