Electronic/Electrical Parts and Controll Equipments

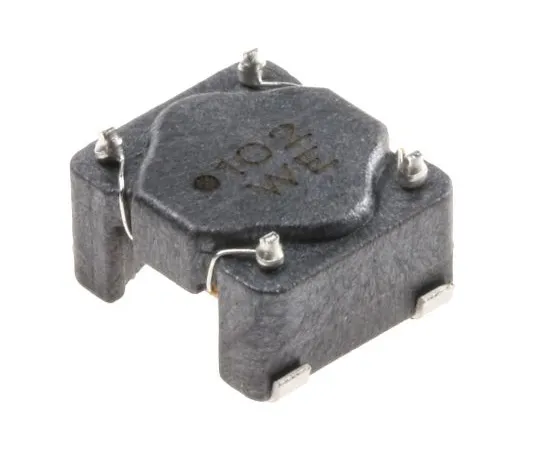

63-4834-92 Wurth WE-SL5 Series Wire-wound SMD Inductor with a Ferrite Core, 1 mH ±40% Sectional Winding 950mA Idc 744272102
model:
63-4834-92
brand:
Wurth Elektronik
Product Description
Product Model: 63-4834-92Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-4834-92
Product Brand: Wurth Elektronik
Features
- Common Mode SMD Line Inductors, Type WE-SL5. 4-way SMD housing Impedances up to 13kΩ Current rating up to 2.5A Low stray/leakage inductance UL compliant housing (UL 94-VO) Applications include CAN, USB, Firewire, data and power lines
Spec
- Quantity：1bag(5pieces)
- Inductance : 1 mH
- Maximum DC Current : 950mA
- Length : 10mm
- Depth : 8.7mm
- Height : 6.5mm
- Dimensions : 10 x 8.7 x 6.5mm
- Tolerance : ±40%
- Maximum DC Resistance : 180mΩ
- Series : WE-SL5
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 100kHz
- Minimum Operating Temperature : -40°C
- CODE No.:500-3307
