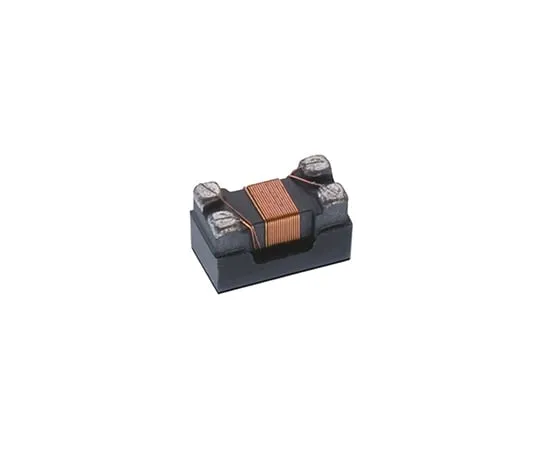

63-4834-90 Wurth WE-CNSW SMD Series Type 1206 (3216M) Wire-wound SMD Inductor with a Ferrite Core, ±25% Dual 260mA Idc 744232601
model:
63-4834-90
brand:
Wurth Elektronik
Product Description
Product Model: 63-4834-90Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-4834-90
Product Brand: Wurth Elektronik
Features
- Wurth WE-CNSW SMD Series Common Mode Chokes. Wurth WE-CNSW common mode filters offer high common mode suppression at high frequency and the winding symmetry provides small influence on high speed signals. Offered with a range of rated currents and impedance values, suitable applications for these common mode filters include USB 2.0, Firewire, LVDS, LAN, high speed data lines and common mode noise sources. Reflow soldering recomm***ed Common mode EMI noise suppressed at high frequencies
Spec
- Quantity：1bag(5pieces)
- Maximum DC Current : 260mA
- Package/Case : 1206 (3216M)
- Length : 3.2mm
- Depth : 1.6mm
- Height : 1.8mm
- Dimensions : 3.2 x 1.6 x 1.8mm
- Tolerance : ±25%
- Maximum DC Resistance : 800mΩ
- Series : WE-CNSW SMD
- Core Material : Ferrite
- Minimum Operating Temperature : -40°C
- CODE No.:500-3060
