Features

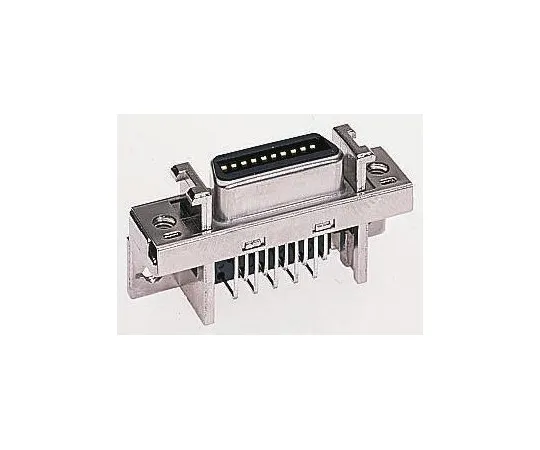

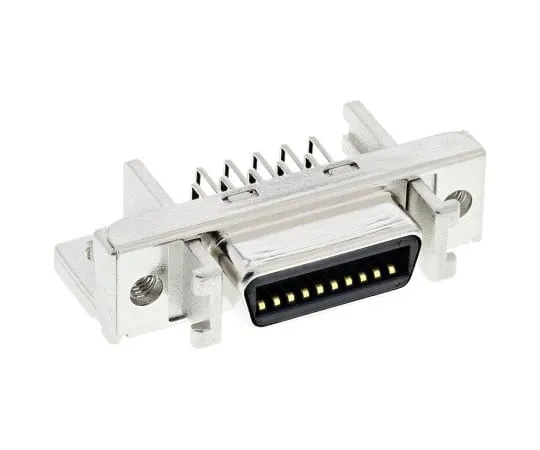

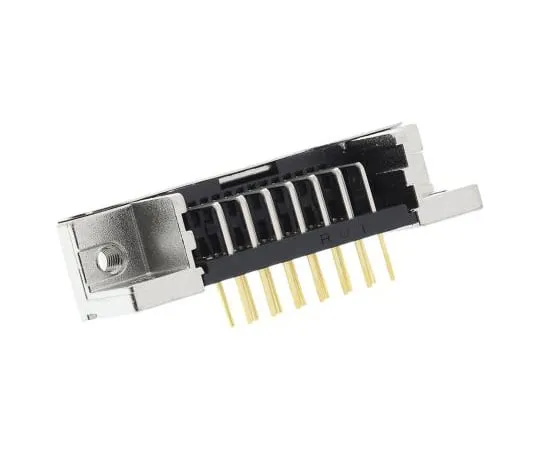

• The thickness of the wiping area Gold plating is determined by the Manufacturers Part Number, those ***ing in PL have 0.2 μm , those ***ing in PE have 0.5 μm and those ***ing in PC have 0.76 μm. 90° Panel Mount PCB I/O Receptacles. These 3M 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles have a 0.050 inch pitch. The design of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles includes an interface latch for improved stability. For the main body/insulation material and mounting variations of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles see below. Mates with cable mounting solder plugs, series stock no. ; 515-7460 515-7460 Excellent EMI/ESD protection PCB mounting right angle sockets with retention by Screw or Ground Locks Panel retention by Metric or UNC threads. 102xx-5 2 xx: Zinc Alloy body 102xx-5 5 xx: PCT Insulator with Steel Nickel plated Shroud 102xx-52 0 x: M2.6 Panel and Screw lock 102xx-52 1 x: M2.5 Panel and Screw lock 102xx-55 B x: M2.5 Panel with Ground lock type 1 (3.8 mm) 102xx-55 F x: M2.6 Panel with Ground lock type 3 (2.3 mm) 102xx-55 G x: M2.5 Panel with Ground lock type 3 (2.3 mm) 102xx-55 H x: #4-40 Panel with Ground lock type 3 (2.3 mm) 102xx-xxx 2 : 3.9 mm long solder Tail 102xx-xxx 3 : 2.8 mm long solder Tail
