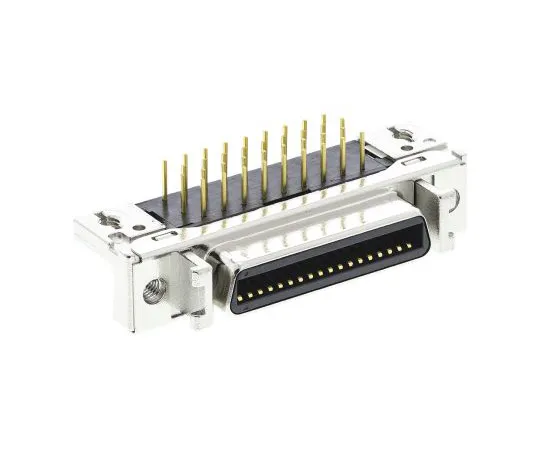

63-4834-80 3M MDR 102 Series, 36 Way Right Angle Through Hole Micro-D PCB Connector Socket, 2.54mm Pitch 10236-5212PL
Electronic/Electrical Parts and Controll Equipments

63-4834-80 3M MDR 102 Series, 36 Way Right Angle Through Hole Micro-D PCB Connector Socket, 2.54mm Pitch 10236-5212PL

model: 63-4834-80
brand: 3M Company

Product Description

Product Model: 63-4834-80Product Brand: 3M Company Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4834-80
Product Brand: 3M Company

Features

  • The thickness of the wiping area Gold plating is determined by the Manufacturers Part Number, those ***ing in PL have 0.2 μm , those ***ing in PE have 0.5 μm and those ***ing in PC have 0.76 μm. 90° Panel Mount PCB I/O Receptacles. These 3M 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles have a 0.050 inch pitch. The design of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles includes an interface latch for improved stability. For the main body/insulation material and mounting variations of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles see below. Mates with cable mounting solder plugs, series stock no. ; 515-7460 515-7460 Excellent EMI/ESD protection PCB mounting right angle sockets with retention by Screw or Ground Locks Panel retention by Metric or UNC threads. 102xx-5 2 xx: Zinc Alloy body 102xx-5 5 xx: PCT Insulator with Steel Nickel plated Shroud 102xx-52 0 x: M2.6 Panel and Screw lock 102xx-52 1 x: M2.5 Panel and Screw lock 102xx-55 B x: M2.5 Panel with Ground lock type 1 (3.8 mm) 102xx-55 F x: M2.6 Panel with Ground lock type 3 (2.3 mm) 102xx-55 G x: M2.5 Panel with Ground lock type 3 (2.3 mm) 102xx-55 H x: #4-40 Panel with Ground lock type 3 (2.3 mm) 102xx-xxx 2 : 3.9 mm long solder Tail 102xx-xxx 3 : 2.8 mm long solder Tail

Spec

  • Quantity:1piece
  • Number of Contacts : 36
  • G***er : Female
  • Body Orientation : Right Angle
  • Mounting Type : Through Hole
  • Pitch : 2.54mm
  • Current Rating : 500mA
  • Housing Material : Glass Fibre Reinforced PET
  • Voltage Rating : 150 V ac, 200 V dc
  • Length : 43.5mm
  • Width : 16.7mm
  • Depth : 9.1mm
  • Dimensions : 43.5 x 16.7 x 9.1mm
  • Minimum Operating Temperature : -55°C
  • CODE No.:499-9796
